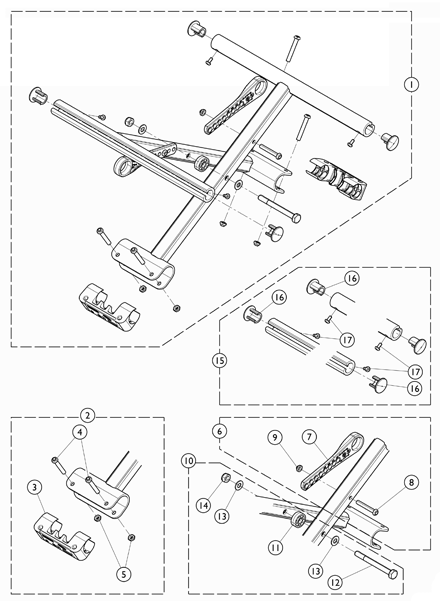

Crossbrace - Conventional Fixed Seat Depth

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Seat Depth	12" Wide Chair	13" Wide Chair	14" Wide Chair
12" Deep	1172267	N/A	N/A
13" Deep	1172268	N/A	N/A
14" Deep	1172269	1172270	1172272
15" Deep	N/A	1172271	1172273

Create/add to Wishlist

#1 Crossbrace Assembly - Junior Fixed

N/A

Create/add to Wishlist

1173765

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Clamp, Saddle, Crossbar	1	2
3	Clamp, Saddle	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
3	Clamp, Saddle, Crossbar	1	1
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
5	NLA - Locknut (M6 x 1)	1	2
3	Clamp, Saddle, Crossbar	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle	1	2
5	NLA - Locknut (M6 x 1)	1	4
6	NLA - Locknut (M6 x 1)	1	4
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4

Kit, Saddle Clamp w/ Hardware (Pair)

$20.00

Create/add to Wishlist

1173776

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	NLA - Locknut (M6 x 1)	1	4
12	Link, Pivot, Crossbrace (12-15" W)	1	2
7	Link, Pivot, Crossbrace (12-15" W)	1	2
12	Link, Pivot, Crossbrace (12-15" W)	1	2
13	Screw (M6 x 45mm)	1	2
14	NLA - Locknut (M6 x 1)	1	4
13	Screw (M6 x 45mm)	1	2
14	NLA - Locknut (M6 x 1)	1	4
8	Screw (M6 x 45mm)	1	2

Kit, Pivot Link w/ Hardware (12 - 15" W)

$29.00

Create/add to Wishlist

1173777

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Washer, Plastic	1	2
14	NLA - Locknut (M6 x 1)	1	2
10	NLA - Locknut (M6 x 1)	1	2
9	Washer (6.6 x 22 x 2)	1	4
12	Bolt (M6 x 80mm)	1	2
7	Washer, Plastic	1	2
7	Bolt (M6 x 80mm)	1	1
8	Washer, Plastic	1	1
9	NLA - Locknut (M6 x 1)	1	1
10	Washer (6.6 x 22 x 2)	1	2
8	Bolt (M6 x 80mm)	1	2
13	Washer (6.6 x 22 x 2)	1	4

Kit, Crossbrace w/ Hardware (Pair)

$33.00

Create/add to Wishlist

1173774

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Plug Button	1	4
16	NLA - Plug Button	1	4
16	NLA - Plug Button	1	4
17	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
8	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
17	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4

NLA - Kit, Plug Buttons w/ Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 17.
B	Includes items 3 - 5.
C	Includes items 7 - 9.
D	Includes items 11 - 14.
E	Includes items 16 - 17.
