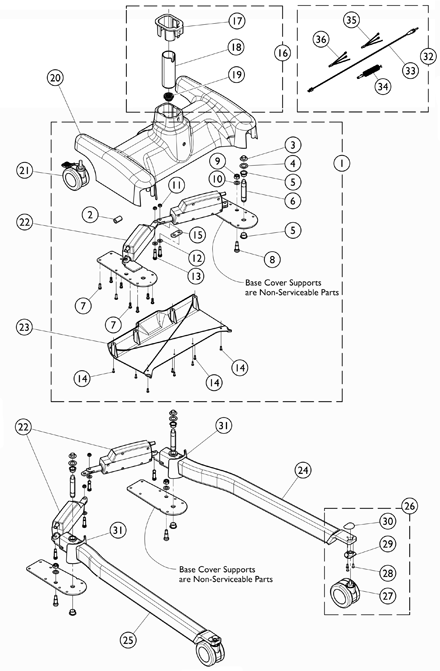

Roze Stand Up Lift - Base Assembly (After 9/1/2011)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1171361

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Washer (3/4 x 1-3/16 x 1/32")	1	2
7	Screw, Socket Head (1/4-20 x 3/4")	1	16
13	Screw, Shoulder, Socket Head (3/8 x 1", 5/16-18)	1	4
9	Nut, Lock, Hex (M12 x 1.75)	1	2
6	Pin (3/4 x 3-3/4")	1	2
7	Screw, Socket Head (1/4-20 x 3/4")	1	16
9	Nut, Lock, Hex (M12 x 1.75)	1	2
14	Screw, Phillips, Pan Head (8-32 x 1/2")	1	8
15	Plate, Actuator	1	1
6	Pin (3/4 x 3-3/4")	1	2
8	Bolt, Kick Prevent	1	2
12	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
14	Screw, Phillips, Pan Head (8-32 x 1/2")	1	8
3	Bushing, Flanged (1/2 x 5/8 x 3/8)	1	2
3	Bushing, Flanged (1/2 x 5/8 x 3/8)	1	2
5	Bearing, Teflon, Flanged	1	4
15	Plate, Actuator	1	1
2	EMI Core	1	1
4	Washer (3/4 x 1-3/16 x 1/32")	1	2
10	Washer (1/2 x 7/8 x 3/64")	1	2
13	Screw, Shoulder, Socket Head (3/8 x 1", 5/16-18)	1	4
2	EMI Core	1	1
10	Washer (1/2 x 7/8 x 3/64")	1	2
5	Bearing, Teflon, Flanged	1	4
12	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
11	Nut, Lock, Hex (5/16-18)	1	2
8	Bolt, Kick Prevent	1	2
11	Nut, Lock, Hex (5/16-18)	1	2

NLA - Kit, Base Hardware

N/A

Create/add to Wishlist

1171481

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Shroud, Base	1	1
19	Junction Box Assembly	1	1
18	Rubber Tube, Base	1	1
18	Rubber Tube, Base	1	1
19	Junction Box Assembly	1	1
17	Shroud, Base	1	1

Kit, Mast to Base Socket

$29.00

C ,E

Create/add to Wishlist

1171524

NLA - Base, Aluminum

N/A

Create/add to Wishlist

1148605

Caster, Rear w/ M12 Bolt

$53.00

Create/add to Wishlist

1171363

Motor, Actuator

$280.00

Create/add to Wishlist

1148607

Cover, Base, Plastic - Blue

$31.00

Create/add to Wishlist

1146888

Leg Assembly, Stand Up, Roze, White - Right

$114.00

Create/add to Wishlist

1146887

Leg Assembly, Stand Up, Roze, White - Left

$76.00

Create/add to Wishlist

1161582

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Caster, Front w/ M12 Bolt	1	2
31	Screw, Phillips, Flat Head (M5 x 11mm)	1	6
30	Mylar, Bracket Leg	1	2
30	Bushing, Plate Leg	1	2
32	Caster, Front w/ M12 Bolt	1	2
27	Caster, Front w/ M12 Bolt	1	2
29	Bushing, Plate Leg	1	2
29	Bushing, Plate Leg	1	2
30	Mylar, Bracket Leg	1	2
29	Mylar, Bracket Leg	1	2
28	Screw, Phillips, Flat Head (M5 x 11mm)	1	6
28	Screw, Phillips, Flat Head (M5 x 11mm)	1	6

Kit, Front Caster and Hardware (Pair)

$221.00

Create/add to Wishlist

1161591

Part/Kit Description	Qty/Pkg	Qty/Asbly
Protection, Toe	1	2
Protection, Toe	1	2
Protection, Toe	1	2

Kit, Toe Protection (Pair)

Create/add to Wishlist

1171360

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
34	Cable, Base Coil	1	1
35	Wire, Brown, Motor Actuator	1	1
33	Cable, Base Controller	1	1
36	Wire, Blue, Motor Actuator	1	1
35	Wire, Brown, Motor Actuator	1	1
33	Cable, Base Controller	1	1
36	Wire, Blue, Motor Actuator	1	1
34	Cable, Base Coil	1	1

NLA - Kit, Controller Wire

N/A

Create/add to Wishlist

1161583

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
36	Wire, Blue, Motor Actuator	1	1
	Cable, Base to Controller	1	1
27	Wire, Blue, Motor Actuator	1	1
33	Cable, Base to Controller	1	1
	Wire, Blue, Motor Actuator	1	1
33	Cable, Base to Controller	1	1
35	Wire, Brown, Motor Actuator	1	1
	Wire, Brown, Motor Actuator	1	1
	Wire, Blue, Motor Actuator	1	1
35	Wire, Brown, Motor Actuator	1	1
	Cable, Base to Controller	1	1
36	Wire, Blue, Motor Actuator	1	1
26	Wire, Brown, Motor Actuator	1	1
	Cable, Base to Controller	1	1
	Wire, Brown, Motor Actuator	1	1

Kit, Controller Wire

$28.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Items 2 - 15.
B	Includes Items 26 - 29.
C	Includes Items 17 - 19. Special Note: Item 17 mounts inside Jasmine Mast Assembly.
D	Includes items 33 - 36. Part #1171360 is no longer available. Use part #1161583 as a replacement.
E	For use on all Roze Lifts manufactured after 9/1/2011.
F	Includes items 33, 35 and 36. Replaces part #1171360.
