1

88804529X003

Pad, Legrest, Vinyl - Right

1

$48.00

A ,B ,I

Create/add to Wishlist

1

88804529X004

Pad, Legrest, Vinyl - Left

1

$48.00

A ,B ,I

Create/add to Wishlist

1

8881091764

Pad, Legrest, Vinyl - Right/Left

1

$48.00

A ,C ,I

Create/add to Wishlist

2

40163X006

NLA - Screw, Phillips Pan Head (#10-14 x 1/16")

1

N/A

Create/add to Wishlist

3

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

4

1025730

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

5

1025133

Spacer, Legrest Pad, Black

1

$10.00

Create/add to Wishlist

6

1032267

Spacer, Legrest Pad Mounting, Black

1

$10.00

Create/add to Wishlist

7

1037110

Screw, Hex Head (5/16-24 x 3-1/2")

1

$8.00

Create/add to Wishlist

8

1028514

Screw, Hex Head (5/16-24 x 1-1/2")

1

$10.00

Create/add to Wishlist

9

1066591

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1

Hardware, Legrest Pad

1

$10.00

H

Create/add to Wishlist

10

1032266

Bracket, Legrest Pad Mounting, Black

1

$19.00

Create/add to Wishlist

11

1040060

Tip, Plastic, Black

1

2

$8.00

Create/add to Wishlist

12

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

1

2

$10.00

Create/add to Wishlist

13

42326X004

Bar, Ratchet - Right/Left

1

2

$8.00

D

Create/add to Wishlist

13

1023811

NLA - Bar, Ratchet - Right

1

2

N/A

E

Create/add to Wishlist

13

1023812

NLA - Bar, Ratchet - Left

1

2

N/A

E

Create/add to Wishlist

14

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

2

$10.00

D

Create/add to Wishlist

14

1025413

NLA - Bushing (11/32 x 7/16 x 1")

1

2

N/A

E

Create/add to Wishlist

15

1040831

Ring, Snap

1

2

$8.00

Create/add to Wishlist

16

1037125

Cam, Legrest

1

2

$8.00

Create/add to Wishlist

17

1037485

Spring, Release

1

2

$8.00

Create/add to Wishlist

18

10261X000

Nut, Acorn (5/16-24)

1

2

$10.00

Create/add to Wishlist

19

04528X002

Bracket, Release, Black

1

2

$8.00

Create/add to Wishlist

20

1037126

Handle, Release

1

2

$10.00

Create/add to Wishlist

21

1046329

Kit, Elevating Legrest Ratchet Hardware (Pair)

2

1

$98.00

D ,F

Create/add to Wishlist

21

1046331

NLA - Kit, Articulating Legrest Ratchet Hardware (Pair)

2

1

N/A

E ,F

Create/add to Wishlist

1042798

NLA - Instruction Sheet, Ratchet Kit

1

N/A

G ,J

Note Code	Definition
A	Specify upholstery color U67 Black when ordering.
B	14-15" wide
C	16-22" wide
D	Used only on Ratchet Style AT5044 Elevating Legrest
E	Used on Articulating Legrest
F	Includes items 11-20 plus instruction sheet
G	Not Shown
H	Includes Screws and Instruction Sheet.
I	Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1066591) when ordering replacement Calf Pads.
J	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

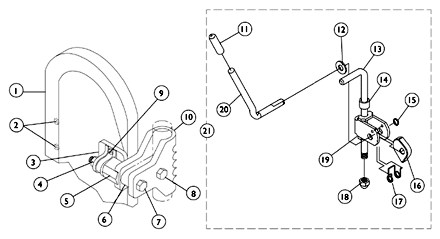

Front Riggings - Legrest Calf Pads and Ratchet Assemblies

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
