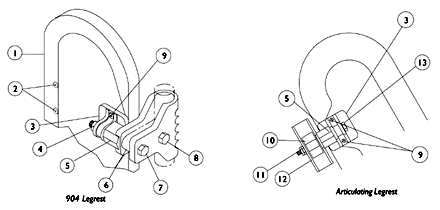

Front Riggings - Calf Pads & Attaching Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1091767

NLA - Pad with Screws, Legrest (Pair)

N/A

A ,B ,E

Create/add to Wishlist

8881091764

Pad, Legrest, Vinyl - Right/Left

$48.00

A ,C ,E

Create/add to Wishlist

01415X000

NLA - Cover, Legrest Pad

N/A

Create/add to Wishlist

40163X006

NLA - Screw, Phillips Pan Head (#10-14 x 1/16")

N/A

Create/add to Wishlist

04526X019

Plate, Legrest Pad

$9.00

Create/add to Wishlist

7930330

NLA - Locknut (5/16-24)

N/A

Create/add to Wishlist

1025133

Spacer, Legrest Pad, Black

$10.00

Create/add to Wishlist

1032267

Spacer, Legrest Pad Mounting, Black

$10.00

Create/add to Wishlist

1037110

Screw, Hex Head (5/16-24 x 3-1/2")

$8.00

Create/add to Wishlist

1028514

Screw, Hex Head (5/16-24 x 1-1/2")

$10.00

Create/add to Wishlist

1066591

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1

Hardware, Legrest Pad

$10.00

Create/add to Wishlist

48823X008

Spring, Leaf

$9.00

Create/add to Wishlist

7930363

NLA - Package, Locknut (5/16"-24)

N/A

Create/add to Wishlist

1025104

Bracket, Legrest, Chrome

$16.00

Create/add to Wishlist

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

$10.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Specify upholstery color when ordering. See page titled, "Frame Finishes, Touch-Up Paint and Upholstery Options."
B	Before 9/5/00 (Pair).
C	After 9/4/00 (Single).
D	Includes Screws and Instruction Sheet.
E	Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1066591) when ordering replacement Calf Pads.

Catalog Literature

Parts Books for Storm Series® Ranger II™ MWD and Chairs for WSBT (Before 3/1/2000)
