EQUIPMENT US Site

1

1114749

NLA - Handle, Release, Black - Right

1

N/A

D

Create/add to Wishlist

1

1114750

NLA - Handle, Release, Black - Left

1

N/A

D

Create/add to Wishlist

2

1025716

Screw, Phillips Pan Head (#10-32 x 11/16")

1

$8.00

Create/add to Wishlist

3

47565X057

Bushing (7/32 x 3/8 x 11/32")

1

$8.00

Create/add to Wishlist

4

1025735

Locknut (#10-32)

1

$3.00

Create/add to Wishlist

5

1026114

Screw, Phillips Pan Head (#10-32 x 1/2")

1

$8.00

Create/add to Wishlist

6

1008935

Spring, Release - Right

1

$10.00

Create/add to Wishlist

6

1008936

Spring, Release - Left

1

$10.00

Create/add to Wishlist

7

67005X000

Rivnut (#10-32)

1

$10.00

Create/add to Wishlist

8

1030979

Screw, Phillips Pan Head Tap (#10-32 x 3/4")

1

$10.00

Create/add to Wishlist

9

1022874

Bumper

1

$8.00

Create/add to Wishlist

10

1114753

Legrest Support Assembly, Black - Right

1

$115.00

E

Create/add to Wishlist

10

1114754

Legrest Support Assembly, Black - Left

1

E

Create/add to Wishlist

11

1006490

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

12

11919X000

NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")

1

N/A

Create/add to Wishlist

13

40363X000

Hex Nut (3/8"-16)

1

$10.00

Create/add to Wishlist

14

1037126

Handle, Release

1

$10.00

Create/add to Wishlist

15

1040060

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

16

1058636

NLA - Washer, Nylon (25/64 x 7/8 x 1/32")

1

2

N/A

Create/add to Wishlist

17

8881048851

Tube, Elevating Adjustable Support, Color - Right

1

A

Create/add to Wishlist

17

8881048852

Tube, Elevating Adjustable Support, Color - Left

1

$37.00

A

Create/add to Wishlist

18

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

$10.00

Create/add to Wishlist

19

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

20

1107321

Nut, Low Cap (5/16"-24)

1

$10.00

Create/add to Wishlist

21

1026030

Bolt, Lug (5/16-24 x 1-3/8")

1

$8.00

Create/add to Wishlist

22

1110207

Bracket, Calf Pad Mounting, Black

1

Create/add to Wishlist

23

1025133

Spacer, Legrest Pad, Black

1

$10.00

Create/add to Wishlist

24

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

25

48823X008

Spring, Leaf

1

$9.00

Create/add to Wishlist

26

1113030

Bar, Ratchet

1

Create/add to Wishlist

27

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

2

$10.00

Create/add to Wishlist

28

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

29

04528X002

Bracket, Release, Black

1

$8.00

Create/add to Wishlist

30

10261X000

Nut, Acorn (5/16-24)

1

$10.00

Create/add to Wishlist

31

1040831

Ring, Snap

1

$8.00

Create/add to Wishlist

32

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

33

1037485

Spring, Release

1

$8.00

Create/add to Wishlist

34

8881091764

Pad, Legrest, Vinyl - Right/Left

1

$48.00

B ,G

Create/add to Wishlist

35

1068649

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1

Hardware, Legrest Pad

1

$11.00

F

Create/add to Wishlist

36

1025730

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

8881114757

Legrest Support Assembly, Hemi, Color - Right

1

$126.00

A ,C ,H

Create/add to Wishlist

8881114758

Legrest Support Assembly, Hemi, Color - Left

1

$126.00

A ,C ,H

Note Code	Definition
A	Specify 34P flat black frame finish when ordering
B	Specify upholstery color U67 black when ordering
C	Not Shown
D	Includes items 2-4
E	Includes items 1-9
F	Includes Screws and Instruction Sheet.
G	Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1068649) when ordering replacement Calf Pads.
H	Includes items 1-33 and 36.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

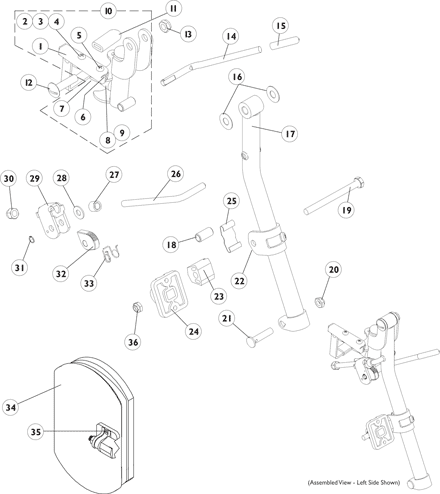

Front Riggings - Legrest Supports - PH904A (Hemi) (After 1/5/03)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist
