EQUIPMENT US Site

1

8881011810

NLA - Arm Pad, Desk Length w/ Law Label

1

B

Create/add to Wishlist

1

8881055204

Pad, Arm, Desk Length

1

$32.00

B

Create/add to Wishlist

1

8881127509

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
24	NLA - Pad, Arm, Full Length w/ Law Label	1	1
25	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
49	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
26	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
27	NLA - Pad, Arm, Full Length w/ Law Label	1	1
2	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
2	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
	NLA - Pad, Arm, Full Length w/ Law Label	1	1
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
8	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
14	NLA - Pad, Arm, Full Length w/ Law Label	1	1
	NLA - Pad, Arm, Full Length w/ Law Label	1	1
	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
48	NLA - Pad, Arm, Full Length w/ Law Label	1	1
7	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
15	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	NLA - Pad, Arm, Full Length w/ Law Label	1	1
10	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
9	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	NLA - Pad, Arm, Full Length w/ Law Label	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
29	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
9	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
20	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
21	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
28	NLA - Pad, Arm, Full Length w/ Law Label	1	1

Kit, Arm Pad w/Screws - Full Length

1

$29.00

C

Create/add to Wishlist

2

1068656

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Clamp, Half, Threaded	1	1
6	Clamp, Half, Non-Threaded	1	1
14	Lever, Actuator	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
21	Locknut (1/4-28)	1	3
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
22	Plug Button, Black (1")	1	1
3	Bracket, Armrest Mounting, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
13	Tip, Plastic, Black	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
15	NLA - Pin, Locking	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
12	Screw, Hex Head (1/4-28 x 2")	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
9	Tube, Arm, Black	1	1
11	Plug, Latch	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
4	Arm Support, Clamp On	1	1
7	Tube, Arm, Extension, Black	1	1
20	NLA - Lockwasher, High Collar (1/4")	1	2
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1

Arm Assembly, Cantilever - Right

1

$108.00

A ,D

Create/add to Wishlist

2

1068657

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Arm Support, Clamp On	1	1
5	Clamp, Half, Threaded	1	1
9	Tube, Arm, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
6	Clamp, Half, Non-Threaded	1	1
13	Tip, Plastic, Black	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
26	Arm Support, Clamp On	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
7	Tube, Arm, Extension, Black	1	1
11	Plug, Latch	1	1
20	NLA - Lockwasher, High Collar (1/4")	1	2
21	Locknut (1/4-28)	1	3
12	Screw, Hex Head (1/4-28 x 2")	1	1
3	Bracket, Armrest Mounting, Black	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
21	Screw, Socket Head (1/4-20 x 1")	1	2
	NLA - Lockwasher, High Collar (1/4")	1	2
22	Clamp, Half, Non-Threaded	1	1
23	Clamp, Half, Threaded	1	1
24	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
25	Screw, Hex Head (1/4-28 x 2")	1	1
26	Arm Support, Clamp On	1	1
1	Locknut (1/4-28)	1	3
4	Tube, Arm, Extension, Black	1	1
5	Plug Button, Black (1")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Tube, Slide, Cantilever Arm, Black	1	1
8	Tip, Plastic, Black	1	1
9	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
10	Lever, Actuator	1	1
12	Tube, Arm, Black	1	1
13	Spring, Compression (5/8 x 1 x 3/64")	1	1
14	Spacer, Coved (1/4 x 1 x 9/16")	1	1
16	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
17	Plug, Latch	1	1
14	Lever, Actuator	1	1
15	NLA - Pin, Locking	1	1
22	Plug Button, Black (1")	1	1
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
18	NLA - Pin, Locking	1	1
19	Bracket, Armrest Mounting, Black	1	1

Arm Assembly, Cantilever - Left

1

$108.00

A ,D

Create/add to Wishlist

2

1173055

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Tube, Arm, Black	1	1
14	Lever, Actuator	1	1
12	Screw, Hex Head (1/4-28 x 2")	1	1
13	Tip, Plastic, Black	1	1
5	Clamp, Half, Threaded	1	1
6	Clamp, Half, Non-Threaded	1	1
15	NLA - Pin, Locking	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
21	Locknut (1/4-28)	1	3
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	1
3	Bracket, Armrest Mounting, Black	1	1
7	Tube, Arm, Extension, Black	1	1
11	Plug, Latch	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
4	NLA - Strap, Wheel Lock	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
22	Plug Button, Black (1")	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
20	NLA - Lockwasher, High Collar (1/4")	1	2
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1

Arm Assembly, Cantilever, Clamp-On - Right

1

A ,E

Create/add to Wishlist

2

1173056

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Clamp, Half, Non-Threaded	1	1
18	NLA - Screw, Hex Head (1/4-28 x 3/4")	1	1
5	Clamp, Half, Threaded	1	1
8	Tube, Slide, Cantilever Arm, Black	1	1
19	Screw, Socket Head (1/4-20 x 1")	1	2
21	Locknut (1/4-28)	1	3
7	Tube, Arm, Extension, Black	1	1
22	Plug Button, Black (1")	1	1
3	Bracket, Armrest Mounting, Black	1	1
9	Tube, Arm, Black	1	1
10	Spring, Compression (5/8 x 1 x 3/64")	1	1
11	Plug, Latch	1	1
17	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1
24	Washer, Nylon (1/4 x 1/2 x 1/32")	1	1
12	Screw, Hex Head (1/4-28 x 2")	1	1
16	Spacer, Coved (1/4 x 1 x 9/16")	1	1
4	NLA - Strap, Wheel Lock	1	1
14	Lever, Actuator	1	1
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
13	Tip, Plastic, Black	1	1
15	NLA - Pin, Locking	1	1
20	NLA - Lockwasher, High Collar (1/4")	1	2

Arm Assembly, Cantilever, Clamp-On - Left

1

A ,E

Note Code	Definition
A	Includes items 2 - 24.
B	For use with AT55D.
C	For use with AT55F.
D	For use with ABH1418, ABH1519, ABH1620, and 8BEND Back Cane setups.
E	For use with FBH14, FBH16, and FBH20 Back Cane setups.

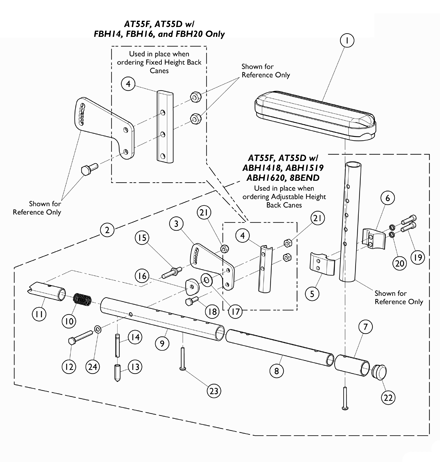

Arms - Cantilever - Clamp On - Desk Length (AT55D), Full Length (AT55F)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Arms - Cantilever - Clamp On - Desk Length (AT55D), Full Length (AT55F)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.
