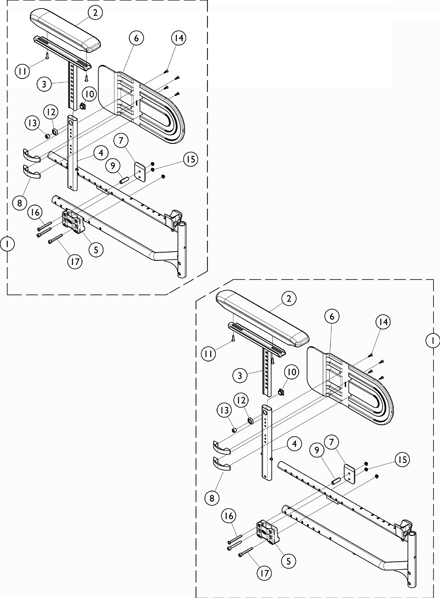

Arms - T Style Adjustable - Heavy Duty - Desk Length (TAD), Full Length (TAF)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1478770

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Tube, Armrest - Right	1	1
4	NLA - Support, Armrest	1	1
2	Arm Pad, Desk Length	1	1
12	Nut, Double, Plastic	1	1
7	Spacer, Nylon	1	1
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
11	Screw (M40 x 14mm)	1	2
13	Screw, Socket Button Head (M6 x 53mm)	1	1
2	Arm Pad, Desk Length	1	1
3	Tube, Armrest - Right	1	1
4	NLA - Support, Armrest	1	1
5	Guard, Side, Clothing	1	1
6	Support, T Arm, Heavy Duty	1	1
7	Spacer, Nylon	1	1
8	Plug Button, Black (3/4")	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
10	Screw, Phillips Flat Head (#4-40 x 3/8")	1	1
11	Screw (M40 x 14mm)	1	2
12	Nut, Double, Plastic	1	1
13	Screw, Socket Button Head (M6 x 53mm)	1	1
14	Screw, Socket Head (M6 x 50)	1	2
15	NLA - Locknut (M6 x 1)	1	4
5	Guard, Side, Clothing	1	1
6	Support, T Arm, Heavy Duty	1	1
14	Screw, Socket Head (M6 x 50)	1	2
15	NLA - Locknut (M6 x 1)	1	4
8	Plug Button, Black (3/4")	1	2
10	Screw, Phillips Flat Head (#4-40 x 3/8")	1	1

T-Arm Assembly w/ Hardware, Desk Length, Heavy Duty - Right

$137.00

Create/add to Wishlist

1478771

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Support, Armrest	1	1
8	Plug Button, Black (3/4")	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
12	Nut, Double, Plastic	1	1
6	Support, T Arm, Heavy Duty	1	1
10	Screw, Phillips Flat Head (#4-40 x 3/8")	1	1
11	Screw (M40 x 14mm)	1	2
15	NLA - Locknut (M6 x 1)	1	4
15	NLA - Locknut (M6 x 1)	1	4
2	Arm Pad, Desk Length	1	1
2	Arm Pad, Desk Length	1	1
3	Tube, Armrest, Black - Left	1	1
4	NLA - Support, Armrest	1	1
5	Guard, Side, Clothing	1	1
6	Support, T Arm, Heavy Duty	1	1
7	Spacer, Nylon	1	1
8	Plug Button, Black (3/4")	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
10	Screw, Phillips Flat Head (#4-40 x 3/8")	1	1
11	Screw (M40 x 14mm)	1	2
12	Nut, Double, Plastic	1	1
13	Screw, Socket Button Head (M6 x 53mm)	1	1
14	Screw, Socket Head (M6 x 50)	1	2
7	Spacer, Nylon	1	1
13	Screw, Socket Button Head (M6 x 53mm)	1	1
14	Screw, Socket Head (M6 x 50)	1	2
5	Guard, Side, Clothing	1	1
3	Tube, Armrest, Black - Left	1	1

T-Arm Assembly w/ Hardware, Desk Length, Heavy Duty - Left

$137.00

Create/add to Wishlist

1487439

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad Mounting Assembly - Left	1	1
4	Tube, Mounting, Adjustable	1	1
8	Bracket, Clothing Guard	1	2
15	NLA - Locknut (M6 x 1)	1	3
9	Spacer, Nylon	1	1
2	Pad, Arm, Full Length	1	1
11	Screw, Countersunk (M4.8)	1	2
13	Screw, Socket Head (M12 x 12.5)	1	1
10	Nut, Square, Armrest	1	1
5	NLA - Support, Armrest	1	1
7	Support, T Arm, Heavy Duty	1	1
17	Screw, Socket Head (M6 x 50)	1	2
2	Pad, Arm, Full Length	1	1
3	Arm Pad Mounting Assembly - Left	1	1
4	Tube, Mounting, Adjustable	1	1
5	NLA - Support, Armrest	1	1
6	Guard, Clothing	1	1
7	Support, T Arm, Heavy Duty	1	1
8	Bracket, Clothing Guard	1	2
9	Spacer, Nylon	1	1
10	Nut, Square, Armrest	1	1
11	Screw, Countersunk (M4.8)	1	2
12	Bushing, Armrest	1	1
13	Screw, Socket Head (M12 x 12.5)	1	1
14	Screw (M4.2 - 16 8.8)	1	4
15	NLA - Locknut (M6 x 1)	1	3
16	Screw, Socket Button Head (M6 x 53mm)	1	1
17	Screw, Socket Head (M6 x 50)	1	2
6	Guard, Clothing	1	1
14	Screw (M4.2 - 16 8.8)	1	4
16	Screw, Socket Button Head (M6 x 53mm)	1	1
12	Bushing, Armrest	1	1

T-Arm Assembly, Central w/ Hardware, Full Length, Heavy Duty - Left

$137.00

Create/add to Wishlist

1487440

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad Mounting Assembly - Right	1	1
10	Nut, Square, Armrest	1	1
11	Screw, Countersunk (M4.8)	1	2
14	Screw (M4.2 - 16 8.8)	1	4
8	Bracket, Clothing Guard	1	2
5	NLA - Support, Armrest	1	1
7	Support, T Arm, Heavy Duty	1	1
9	Spacer, Nylon	1	1
2	Pad, Arm, Full Length	1	1
4	Tube, Mounting, Adjustable	1	1
6	Guard, Clothing	1	1
12	Bushing, Armrest	1	1
16	Screw, Socket Button Head (M6 x 53mm)	1	1
15	NLA - Locknut (M6 x 1)	1	3
2	Pad, Arm, Full Length	1	1
3	Arm Pad Mounting Assembly - Right	1	1
4	Tube, Mounting, Adjustable	1	1
5	NLA - Support, Armrest	1	1
6	Guard, Clothing	1	1
7	Support, T Arm, Heavy Duty	1	1
8	Bracket, Clothing Guard	1	2
9	Spacer, Nylon	1	1
10	Nut, Square, Armrest	1	1
11	Screw, Countersunk (M4.8)	1	2
12	Bushing, Armrest	1	1
13	Screw, Socket Head (M12 x 12.5)	1	1
14	Screw (M4.2 - 16 8.8)	1	4
15	NLA - Locknut (M6 x 1)	1	3
16	Screw, Socket Button Head (M6 x 53mm)	1	1
17	Screw, Socket Head (M6 x 50)	1	2
13	Screw, Socket Head (M12 x 12.5)	1	1
17	Screw, Socket Head (M6 x 50)	1	2

T-Arm Assembly, Central w/ Hardware, Full Length, Heavy Duty - Right

$137.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 15.
B	Includes items 2 - 17.

Catalog Literature

Parts Books for MyOn® United States Junior (FXMYONJR, GRMYONJR) Adult (MYONADLT, MYONTS, HDPG)
