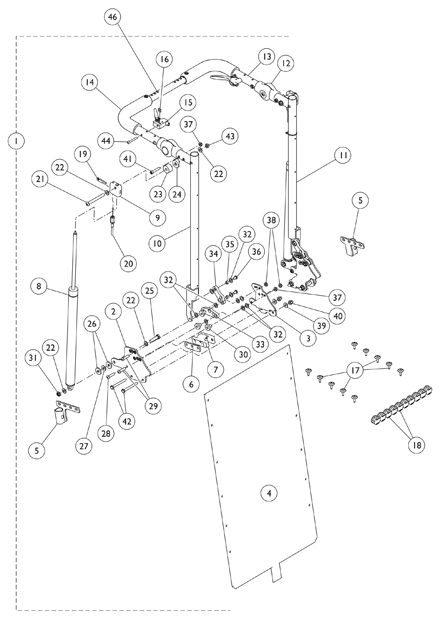

Recliner - Low Shear - Retro-Fit Kit w/ Upholstery (14-20" Wide)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width		Kit Part Number
14" W		Note-A 1171137 MSRP: $1,204.00
15" W		Note-A 1171138 MSRP: $1,204.00
16" W		Note-A 1171139 MSRP: $1,204.00
17" W		Note-A 1171140 MSRP: $1,091.00
18" W		Note-A 1171141 MSRP: $1,204.00
19" W		Note-A 1171142 MSRP: $1,204.00
20" W		Note-A 1171143 MSRP: $1,204.00

Create/add to Wishlist

See chart-note

#1 Retro-Fit Kit, Low Shear w/ Upholstery (14-20" Wide)

N/A

Create/add to Wishlist

1134190

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4

Kit, Stroller Handle, Adjustable Angle - Outside Mount

$132.00

Create/add to Wishlist

See Chart

Added to Cart

12-16" Wide Tube		14-18" Wide Tube		16-20" Wide Tube		18-22" Wide Tube		20-24" Wide Tube
1129473 MSRP: $16.00		1129474 MSRP: $16.00		1129475 MSRP: $16.00		1129476 MSRP: $16.00		1159455 MSRP: $15.00

Create/add to Wishlist

#46 Crossbrace Tube

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 - 11, and 13 - 44.
B	Includes Gear, Screws, and Nuts.

Catalog Literature

Parts Books for Solara® 2G Spree GT™

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button (1/4-20 x 3/8")	1	4
Handle, Cable Release, Black	1	2
Screw, Phillip Pan Head (10-32 x 1-3/8")	1	2
Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	2
Locknut (5/16-18)	1	2
Screw, Hex Head (1/4-28 x 2-1/4")	1	4
Nut, Hex Nylon (1/4-28)	1	4
Locknut, Thin (1/4-28)	1	4
Plate, Outer - Right	1	1
Plate, Inner - Right	1	1
Plate, Spacer	1	2
Universal Washer	1	1
Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	4
Bushing, Pivot	1	6
Plate, Outer - Left	1	1
Plate, Inner - Left	1	1
Bushing (5/16 x 1")	1	2
Arm Cup Assembly, Rear - Right	1	1
Arm Cup Assembly, Rear - Left	1	1
Nut, Square (#10-32)	1	2
Instruction Sheet, Recliner Installation	1	1
Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	2
Package, Back Upholstery Screws w/ Washers (#10 x 7/8")	1	1
Package, Plug Button, Black (1")	1	1
Cable Release Assembly	1	2
Screw, Socket Flat Head (1/4-24 x 7/8")	1	2
NLA - Washer (1/4 x 5/8 x 1/16")	1	4
Bracket, Cylinder Release, Black	1	2
NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
Lever, Cylinder Release	1	2
Washer (1/4 x 5/8 x 3/32")	1	4
Washer, Nylon (5/16 x 7/8 x 1/8")	1	4
Tie Wrap (3-29/32" L)	1	2
Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2
Stroller Handle Assembly - Right/Left	1	2
Washer, Steel (21/64 x 5/8 x 3/64")	1	8
Locknut (5/16-24)	1	2
Locknut (1/4-28)	1	2
Upholstery, Back, Recliner, U240 (14" W x 24" H)	1	1
Cylinder, Gas, Recliner	1	2
Link, Lower, Reclining Back - Left	1	1
Washer, Nylon (3/8 x 5/8 x 3/64)	1	8
Washer (1/2 x 13/16 x 1/32")	1	4
Link, Lower, Reclining Back - Right	1	1
Link, Upper, Reclining Back - Left	1	1
Link, Upper, Reclining Back - Right	1	1
Bushing (3/8 x 1/2 x 3/16)	1	4
Nut, Barrel (1/4-20)	1	4
NLA - Cane, Back, Recliner w/ Upholstery, Black - Right	1	1
