Front Riggings - Footplate - Pivot Tube, and Hardware -1651 Composite

Print this page

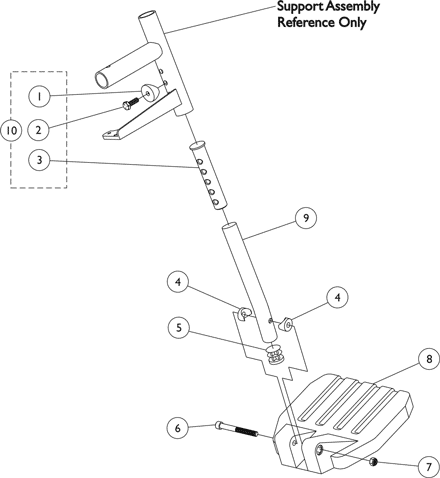

Footplates with Pivot Tubes - Composite

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1045267	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1020534	Insert, Threaded	1	1	$9.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025457	Spacer, Coved (1/4 x 3/4 x 11/32")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	60285X006	Screw, Socket Head (1/4-20 x 2-1/4")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025195	Locknut (1/4-20)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026879	Footplate, Composite, Small, Black (6" W x 6" L)	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026880	Footplate, Composite, Medium, Black (7" W x 6" L)	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026881	Footplate, Composite, Large, Black (8" W x 6" L)	1	1	$80.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120383	Tube, Pivot/Slide, Curved End, Black - Short (8-1/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120382	Tube, Pivot/Slide, Curved End, Black - Long (9-7/8")	1	1	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120386	Tube, Pivot/Slide, Curved, 2" Longer, Black (11-7/8")	1	1	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120384	NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120385	Tube, Pivot/Slide, Straight - Black (11-7/8" L)	1	1	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1061967	Tube, Pivot/Slide, Straight, Black (5-1/2")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026703	Kit, Pivot/Slide Tube Mounting Hardware (Pair)	1	1	$30.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not require ordering in Pairs.

Catalog Literature

Parts Books for Solara® Solara® Limited
