Wheels - Rear w/o Handrims, w/ Hublock Hardware - Chairs w/ Hublocks (12", 20")

Print this page

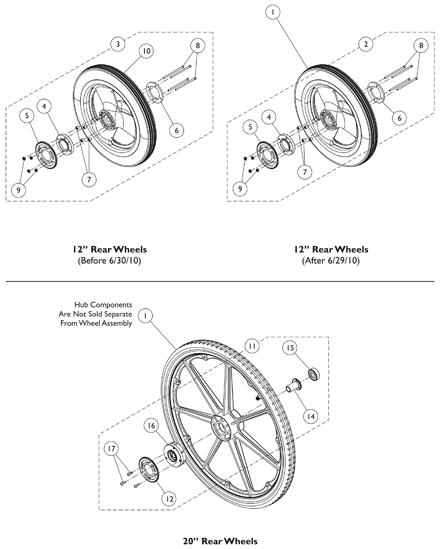

Wheels w/o Handrims and Hublock Hardware - Chairs w/ Hublocks

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Wheel Style	Wheel Size	Tire Type	Wheel Asm. w/o Hdrm.	Tire	Tube/ Insert	Outside Bearing	Inside Bearing
12COM	12 x 2-1/4"	Pneumatic	Note-B 1167104 MSRP: $242.00	1011524 MSRP: $66.00	1011525 MSRP: $17.00	40117X022 MSRP: $11.00	1104350 MSRP: $11.00
12COM	12 x 2-1/4"	Pneumatic w/ Flat Free	Note-B 1167103 MSRP: $135.00	1011524 MSRP: $66.00	1165859 MSRP: $52.00	40117X022 MSRP: $11.00	1104350 MSRP: $11.00
20COM	20 x 1-3/8"	Pneumatic	Note-A 1164064	1017519 MSRP: $28.00	1017520 MSRP: $11.00	40117X022 MSRP: $11.00	N/A
20COM	20 x 1-3/8"	Pneumatic w/ Flat Free	Note-A 1164065 MSRP: $306.00	1017519 MSRP: $28.00	1023322 MSRP: $48.00	40117X022 MSRP: $11.00	N/A
20COM	20 x 1-1/4"	Urethane	Note-A 1164066 MSRP: $284.00	1037774 MSRP: $47.00	N/A	40117X022 MSRP: $11.00	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Wheels come assembled with Hub Assembly, Ring Gear, Retaining Nut, Bearing and Screws.
B	The 12" Wheel only accommodates a Hublock that uses four attaching screws. Existing 12" wheels in the field that have six attaching hole locations must be replaced with Item #3 (1169314 or 1169315).

#1 Rear Wheels with Hublocks

N/A

Create/add to Wishlist

1167105

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Adapter, Wheel Hub	1	1
5	Ring, Gear, Hublock	1	1
6	Ring, Retaining, Wheel (12-1/2")	1	1
7	Spacer, Wheel Hub	1	4
8	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
9	NLA - Nut, Hex Lock (#6-32)	1	4
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4

Kit, Hublock Hardware, Wheel (12")

$96.00

Create/add to Wishlist

1169314

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Spacer, Wheel Hub	1	4
8	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
9	NLA - Nut, Hex Lock (#6-32)	1	4
10	Wheel Assembly, Composite, Pneumatic w/ Flat Free, Hublock (12" x 2-1/4")	1	1
4	Adapter, Wheel Hub	1	1
5	Ring, Gear, Hublock	1	1
6	Ring, Retaining, Wheel (12-1/2")	1	1
4	Wheel Assembly, Composite, Pneumatic w/ Flat Free, Hublock (12" x 2-1/4")	1	1
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
4	Wheel Assembly, Composite, Pneumatic w/ Flat Free, Hublock (12" x 2-1/4")	1	1
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4

Kit, Wheel Assembly w/ Hublock Hardware, Pneumatic FF (12")

$294.00

Create/add to Wishlist

1169315

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Adapter, Wheel Hub	1	1
5	Ring, Gear, Hublock	1	1
6	Ring, Retaining, Wheel (12-1/2")	1	1
7	Spacer, Wheel Hub	1	4
8	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
9	NLA - Nut, Hex Lock (#6-32)	1	4
10	Wheel Assembly, Composite, Pneumatic, Hublock (12" x 2-1/4")	1	1
4	Wheel Assembly, Composite, Pneumatic, Hublock (12" x 2-1/4")	1	1
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4
4	Wheel Assembly, Composite, Pneumatic, Hublock (12" x 2-1/4")	1	1
5	Ring, Gear, Hublock	1	1
6	Adapter, Wheel Hub	1	1
7	Ring, Retaining, Wheel (12-1/2")	1	1
8	Spacer, Wheel Hub	1	4
9	Screw, Socket, Cap (#6-32 x 2-3/4")	1	4
10	NLA - Nut, Hex Lock (#6-32)	1	4

Kit, Wheel Assembly w/ Hublock Hardware, Pneumatic (12")

$257.00

Create/add to Wishlist

1164038

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Hub Assembly, Composite	1	1
5	Ring, Gear, Hublock	1	1
6	Nut, Hub Retaining	1	1
7	Bearing (1/2" I.D. x 1-3/8" O.D.)	1	1
8	Screw, Button Head Cap w/ Patch (#10-24 x 1/2)	1	3
12	Hub Assembly, Composite	1	1
13	Ring, Gear, Hublock	1	1
14	Screw, Button Head Cap w/ Patch (#10-24 x 1/2)	1	3
15	Bearing (1/2" I.D. x 1-3/8" O.D.)	1	1
16	Nut, Hub Retaining	1	1
16	Ring, Gear, Hublock	1	1
17	Hub Assembly, Composite	1	1
18	Nut, Hub Retaining	1	1
19	Bearing (1/2" I.D. x 1-3/8" O.D.)	1	1
20	Screw, Button Head Cap w/ Patch (#10-24 x 1/2)	1	3

NLA - Kit, Hublock Hardware, Wheel (20", 22", 24")

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 4 - 9.
B	Includes items 4 - 10. When replacing a wheel with a Hublock that originally had six screws on chairs manufactured before 6/30/10, Item #3 (1169314 or 1169315) must be ordered because the new Hublock design only uses four.
C	Includes items 12 - 15.
