Front Riggings - AT5043 Flip-Up Footplates

Print this page

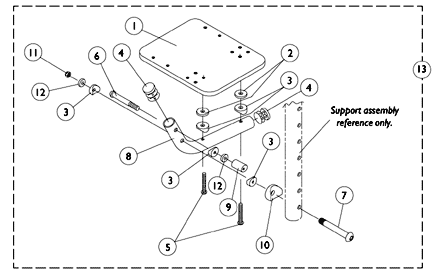

AT5043 Flip-Up Footplates

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1044082	NLA - Footplate, Black (4-1/4" W x 5-1/4" L) (12" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1029454	NLA - Washer, Nylon (3/16 x 3/4 x 5/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025457	Spacer, Coved (1/4 x 3/4 x 11/32")	1	5	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027097	Plug Button, Black (3/4")	1	2	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1163311	Screw, Socket Button Head (10-32 x 1-1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1023967	NLA - Screw, Socket Button Head (1/4-20 x 2-5/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1029428	NLA - Tube, Footrest, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028417	NLA - Cam, Adjustment	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	40157X020	Spacer, Coved (1/4 x 1 x 9/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930333	Locknut (1/4-20)	25	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1018739	Washer (1/4 x 5/8 x 3/32")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1029434	NLA - Flip-Up Footplate Assembly, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1029435	NLA - Flip-Up Footplate Assembly, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
