Electronics - MKIV Mid-Line Swing Bracket Assembly

Print this page

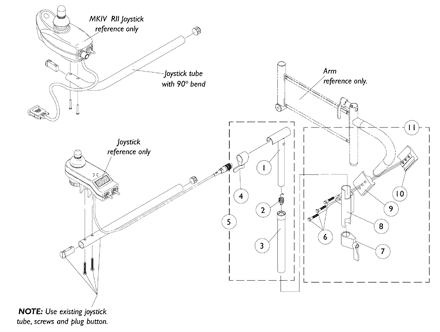

MKIV Mid-Line Swing Bracket Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1035528	NLA - Tube, Adjustment, Inside, Mid-Line, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1016778	NLA - Spring, Extension (9/16 x 1-3/8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1035860	NLA - Tube, Adjustment, Outside, Mid-Line, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027274	Adjustment Lock Assemnbly, Black	1	1	$49.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1035852	NLA - Swing Bracket Assembly, Mid-Line, Black	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930349	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	25	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1027274	Adjustment Lock Assemnbly, Black	1	1	$49.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1071879	NLA - Bracket, Joystick Mounting, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1027266	Half Clamp, Non-Threaded Holes	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1027267	NLA - Half Clamp, Threaded Holes	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1071880	NLA - Hardware, Attaching - Mid-Line	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1092610	NLA - Joystick, RII	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Left side joystick mounting bracket or hardware must be ordered as special.
B	Includes items 1-4
C	Includes items 6-10
D	Not Shown

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
