Seat and Seat Options

Print this page

Seat and Seat Options

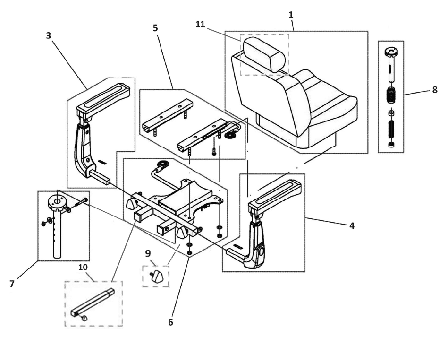

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1521890	Seat, Standard	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1586116	Seat, Standard (20") w/ Double White Stitching	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1533705	Seat, Comet HD (26")	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1586115	Seat, HD (26"), Double White Stitching	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1521689	Armrest - Left	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1533706	Armrest - Left, Comet HD	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1521688	Armrest - Right	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1533707	Armrest - Right, Comet HD	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1521690	Slide Assembly	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1505533	Seat Bracket Assembly	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1533708	Seat Bracket Assembly, Comet HD	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1521691	Seat Post Bracket, Standard	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1541629	Seat Suspension (560 mm)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1541628	Seat Suspension (535 mm)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1507005	Knob, Tightening	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1541502	Accessory Extension, Comet HD	0	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1529380	Headrest Standard,Seat	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1518240	Seat Cover, Comet - Black Only	0	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Additional Accessory, not included with Scooter, necessary to attach ACC140, ACC200, ACC210, ACC220, ACC230.
B	Not Shown in illustration.

Catalog Literature

Parts Books for Invacare® Comet/Comet HD
