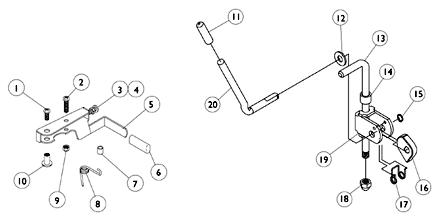

Front Riggings - Legrest Release Handles & Ratchets

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930328	NLA - Package, Screw, Phillips Pan Head (#10-32 x 11/16")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930335	NLA - Package, Screw, Phillips Pan Head (#10-32 x 1/2")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026107	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	1	$10.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1028485	NLA - Nut, Hex (#10-32)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1035539	Handle, Release, Black - Right	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1035540	Handle, Release, Black - Left	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1006490	Tip, Plastic, Black	1	1	$8.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028707	Spring, Release - Right	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028708	Spring, Release - Left	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930332	NLA - Locknut, High Profile (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028846	NLA - Rivnut (#10-32)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	7930310	NLA - Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	42326X004	Bar, Ratchet - Right/Left	25	1	$8.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1023811	NLA - Bar, Ratchet - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1023812	NLA - Bar, Ratchet - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	47330X003	Spacer (5/16 x 1/2 x 3/8")	2	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	7930336	NLA - Nut, Acorn (5/16-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	04528X002	Bracket, Release, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	These items are only required on Release Handles for chairs built before 10/1/00
B	Articulating
C	904 Legrest

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
