Item Number	Description	Ocean Blue	Emerald Green	Liquid Black	Candy Apple Red
1	Side Panel w/ Rubber Bushing Right	1102286- NLA	1102287- NLA	1102285- NLA	1102284- NLA
1	Side Panel w/ Rubber Bushing Left	1102290- NLA	1102291- NLA	1102289- NLA	1102288- NLA
2	Battery Cover	1094777- NLA	1094778- NLA	1094776- NLA	1094775- NLA
3	Trunk Lid	Note-B 1102258- NLA	1102259- NLA	1102257- NLA	1102256- NLA
4	Rear Storage Compartment, Black	1095591- NLA	1095591- NLA	1095591- NLA	1095591- NLA
5	Rear Storage Compartment Shelf, Black	1071655- NLA	1071655- NLA	1071655- NLA	1071655- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals, Dual lock fasteners, and Spacers are not included with shrouds.
B	Trunk Lid NLA. Must choose a remaining color option for replacement, in which case all shrouds should be replaced so that the color matches.

Item #s 1-5 Shroud Covers

N/A

Create/add to Wishlist

6

1070565

NLA - Bracket, Shroud, Black - Right

1

N/A

Create/add to Wishlist

6

1070566

NLA - Bracket, Shroud, Black - Left

1

N/A

Create/add to Wishlist

7

1045267

Screw, Hex Head w/ Patch (1/4-20 x 3/4")

1

4

$10.00

Create/add to Wishlist

8

1028516

Washer, Steel (3/16 x 7/16 x 1/16")

1

2

$3.00

Create/add to Wishlist

9

7930332

NLA - Locknut, High Profile (#10-32)

25

8

N/A

Create/add to Wishlist

10

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

11

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

6

N/A

Create/add to Wishlist

12

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

2

$10.00

Create/add to Wishlist

13

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

2

$10.00

C

Create/add to Wishlist

1095592

NLA - Hardware, Side Panel Attaching

1

N/A

A

Create/add to Wishlist

14

1097290

Kit, Dual Lock Fastener/ Spacer

1

B

Create/add to Wishlist

15

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

16

1070583

NLA - Stud, Wing Head (3/4" Long)

1

2

N/A

Create/add to Wishlist

17

1070581

NLA - Washer, Nylon Cupped (9/32 x 19/32 x 3/32")

1

4

N/A

Create/add to Wishlist

18

1070580

NLA - Washer, Nylon Retainer (1/4 x 1/2 x 1/32")

1

4

N/A

Create/add to Wishlist

19

1070582

NLA - Rivet

1

4

N/A

Create/add to Wishlist

20

1070574

NLA - Stud, Wing Head (1" Long)

1

2

N/A

Create/add to Wishlist

21

1070563

NLA - Plate, Trunk

1

2

N/A

Create/add to Wishlist

22

1062096

NLA - Fastener, Loop (1/2" W x 1" L)

1

4

N/A

Create/add to Wishlist

23

1070594

NLA - Bushing, Rubber

1

2

N/A

Create/add to Wishlist

24

1013497

NLA - Fastener, Turn, Clip-On (1/4")

1

2

N/A

Create/add to Wishlist

25

40157X019

Coved Spacer

1

2

N/A

Create/add to Wishlist

1102292

NLA - Instruction Sheet, Dual Lock Fastener/ Spacer Kit

1

N/A

A

Note Code	Definition
A	Not Shown
B	Kit includes 2 ea. dual lock fasteners (5/8"W x 2"L) and 1"W x 2"L), 4 ea dual lock spacers and instruction sheet
C	Includes Items 6-13 and 25

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

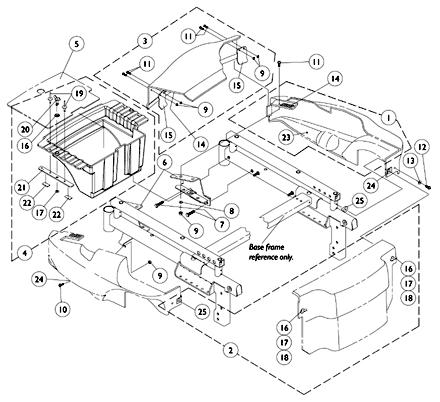

Shroud Covers - ASBA - Captain - PTO-PR Power Tilt & ESS6-PR Elevating Seat
