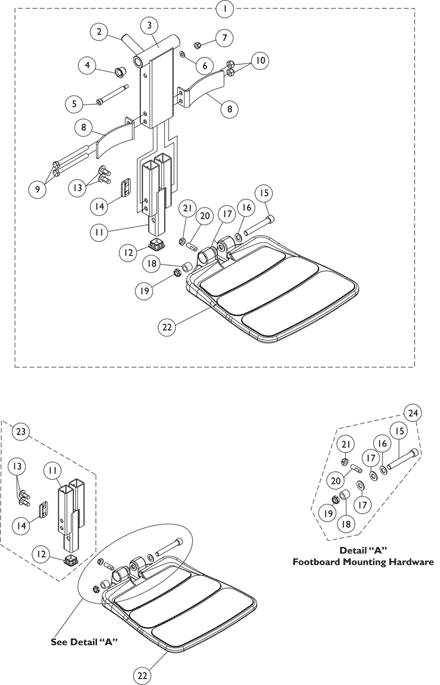

Front Rigging - Center Mount Rigging (CTMT-FJ with CTMTFB)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1166063

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
6	Washer (1/4 x 1/2 x 1/16")	1	1
7	Locknut (1/4-20)	1	1
8	Bracket, Heel Stop, Black	1	2
9	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
10	Locknut (5/16-18)	1	2
11	Footboard Extension Assembly, Black (9-1/2" - 11" Range)	1	1
12	Plug Button, Black (1" Square)	1	1
13	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	4
14	Cleat, Button Head	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	NLA - Footboard with Cover	1	1
