Front Riggings - Center Mount Rigging Kit(CTMT-F/CTMT-FL/CTMT-FJ) For ADJASBA Seat - After 7/4/05

Print this page

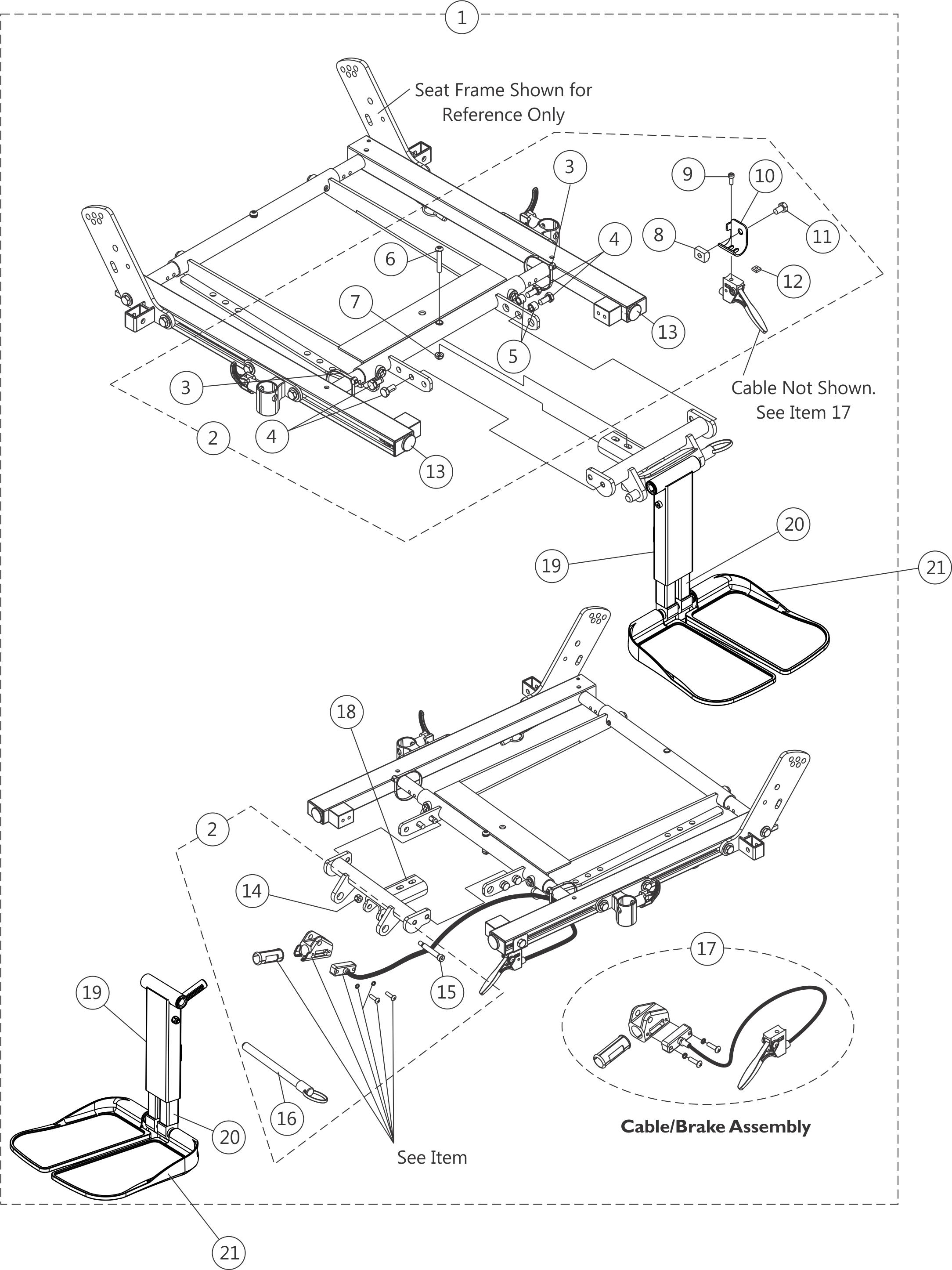

Front Rigging - Center Mount Rigging Kit

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1129453

NLA - Kit, Center Mount Rigging (CTMT-F 11"-15" Range & 16"-19" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1129454

NLA - Kit, Center Mount Rigging (CTMT-FL 14"-18" Range & 16"-19" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1129455

NLA - Kit, Center Mount Rigging (CTMT-FJ 9-1/2"-11" Range & 16"-19" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1134118

NLA - Kit, Center Mount Rigging (CTMT-F 11"-15" Range & 19"-22" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1134119

NLA - Kit, Center Mount Rigging (CTMT-FL 14"-18" Range & 19"-22" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1134120

NLA - Kit, Center Mount Rigging (CTMT-FJ 9-1/2"-11" Range & 19"-22" Seat Depths)

N/A

A ,C

Create/add to Wishlist

1129451

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Tie Wrap (11-1/2" L)	1	2
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Spacer (5/16 x 7/16 x 3/8")	1	2
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
7	Locknut (1/4-20)	1	1
8	T-Nut (5/16-18)	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
10	Bracket, Release Handle Mounting, Black	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Nut, Square (#10-32)	1	1
13	Plug Button, Black (1")	1	2
14	Locknut (1/4-20)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Spacer (5/16 x 7/16 x 3/8")	1	2
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
7	Locknut (1/4-20)	1	1
8	T-Nut (5/16-18)	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
10	Bracket, Release Handle Mounting, Black	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Nut, Square (#10-32)	1	1
13	Plug Button, Black (1")	1	2
14	Locknut (1/4-20)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
8	T-Nut (5/16-18)	1	1
5	Spacer (5/16 x 7/16 x 3/8")	1	2
10	Bracket, Release Handle Mounting, Black	1	1
12	Nut, Square (#10-32)	1	1
14	Locknut (1/4-20)	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
12	Nut, Square (#10-32)	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
13	Plug Button, Black (1")	1	2
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1
3	Tie Wrap (11-1/2" L)	1	2
14	Locknut (1/4-20)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Spacer (5/16 x 7/16 x 3/8")	1	2
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
7	Locknut (1/4-20)	1	1
8	T-Nut (5/16-18)	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
10	Bracket, Release Handle Mounting, Black	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Nut, Square (#10-32)	1	1
13	Plug Button, Black (1")	1	2
14	Locknut (1/4-20)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
7	Locknut (1/4-20)	1	1
13	Plug Button, Black (1")	1	2
5	Spacer (5/16 x 7/16 x 3/8")	1	2
8	T-Nut (5/16-18)	1	1
10	Bracket, Release Handle Mounting, Black	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Spacer (5/16 x 7/16 x 3/8")	1	2
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
7	Locknut (1/4-20)	1	1
8	T-Nut (5/16-18)	1	1
9	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
10	Bracket, Release Handle Mounting, Black	1	1
11	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
12	Nut, Square (#10-32)	1	1
13	Plug Button, Black (1")	1	2
14	Locknut (1/4-20)	1	1
15	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
16	NLA - Pin, Quick Release (5" Long)	1	1

NLA - Kit, CTMT-F/CTMT-FL/CTMT-FJ Center Mount Riggings Mounting Hardware

N/A

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Create/add to Wishlist

1122675

Support, Center Mount Rigging, Black (16 - 19" D)

$154.00

Create/add to Wishlist

1136001

Support, Center Mount Rigging, Long, Black (19 - 22" D)

$199.00

Create/add to Wishlist

1129450

NLA - Instruction Sheet, Center Mount Rigging Kit For ADJASBA Seats

N/A

Create/add to Wishlist

1117262

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Support, Footrest, Center Mount, Black - Regular	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
5	Cleat, Button Head	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
14	Washer (1/2 x 7/8 x 3/64")	1	2
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
10	Locknut (1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Cleat, Button Head	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Washer (1/4 x 1/2 x 1/16")	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Cleat, Button Head	1	2
	Locknut (1/4-20)	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Cleat, Button Head	1	2
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Locknut (1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
10	Locknut (1/4-20)	1	1
	Washer (1/2 x 7/8 x 3/64")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
3	Support, Footrest, Center Mount, Black - Regular	1	1
14	Washer (1/2 x 7/8 x 3/64")	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Washer (1/4 x 1/2 x 1/16")	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	1
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Support, Footrest, Center Mount, Black - Regular	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Cleat, Button Head	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Locknut (1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
	Locknut (1/4-20)	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
10	Locknut (1/4-20)	1	1
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Medium, Black - Right	1	1
7	Tube, Extension, Footrest, Medium, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Medium, Black - Right	1	1
	Tube, Extension, Footrest, Medium, Black - Left	1	1

Kit, Center Mount Front Rigging (CTMT) (CTMT-F), ASBA/ADJASBA (11" - 15" Range)

$336.00

Create/add to Wishlist

1117263

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Tube, Extension, Footrest, Long, Black - Right	1	1
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
14	Washer (1/2 x 7/8 x 3/64")	1	2
7	Tube, Extension, Footrest, Long, Black - Right	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
7	Tube, Extension, Footrest, Long, Black - Left	1	1
10	Locknut (1/4-20)	1	1
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/4 x 1/2 x 1/16")	1	1
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
5	Cleat, Button Head	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
10	Locknut (1/4-20)	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
10	Locknut (1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Locknut (1/4-20)	1	1
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
3	Support, Footrest, Center Mount, Black - Regular	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
3	Support, Footrest, Center Mount, Black - Regular	1	1
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Support, Footrest, Center Mount, Black - Regular	1	1
	Cleat, Button Head	1	2
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
14	Washer (1/2 x 7/8 x 3/64")	1	2
	Support, Footrest, Center Mount, Black - Regular	1	1
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Support, Footrest, Center Mount, Black - Regular	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Washer (1/2 x 7/8 x 3/64")	1	2
7	Tube, Extension, Footrest, Long, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Cleat, Button Head	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
7	Tube, Extension, Footrest, Long, Black - Right	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Cleat, Button Head	1	2
	Tube, Extension, Footrest, Long, Black - Right	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Locknut (1/4-20)	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Regular	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Long, Black - Right	1	1
	Tube, Extension, Footrest, Long, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Regular	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Long, Black - Right	1	1
7	Tube, Extension, Footrest, Long, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8

Kit, Center Mount Front Rigging (CTMT-L) (CTMT-FL), ASBA/ADJASBA (14" - 18" Range)

Create/add to Wishlist

1121990

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
7	Tube, Extension, Footrest, Short, Black - Right	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Washer (1/4 x 1/2 x 1/16")	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Tube, Extension, Footrest, Short, Black - Right	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
5	Cleat, Button Head	1	2
3	Support, Footrest, Center Mount, Black - Short	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Left	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Tube, Extension, Footrest, Short, Black - Left	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Washer (1/2 x 7/8 x 3/64")	1	2
	Cleat, Button Head	1	2
	Locknut (1/4-20)	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Support, Footrest, Center Mount, Black - Short	1	1
	Cleat, Button Head	1	2
	Washer (1/4 x 1/2 x 1/16")	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
10	Locknut (1/4-20)	1	1
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
7	Tube, Extension, Footrest, Short, Black - Right	1	1
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Cleat, Button Head	1	2
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Locknut (1/4-20)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
14	Washer (1/2 x 7/8 x 3/64")	1	2
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Support, Footrest, Center Mount, Black - Short	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
5	Cleat, Button Head	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	1
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Washer (1/4 x 1/2 x 1/16")	1	1
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
10	Locknut (1/4-20)	1	1
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Tube, Extension, Footrest, Short, Black - Right	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Locknut (1/4-20)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
7	Tube, Extension, Footrest, Short, Black - Left	1	1
14	Washer (1/2 x 7/8 x 3/64")	1	2
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
2	Rack, Center Mount Rigging Angle Adjustable	1	1
3	Support, Footrest, Center Mount, Black - Short	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	Cleat, Button Head	1	2
6	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
7	Tube, Extension, Footrest, Short, Black - Right	1	1
7	Tube, Extension, Footrest, Short, Black - Left	1	1
8	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
9	Washer (1/4 x 1/2 x 1/16")	1	1
10	Locknut (1/4-20)	1	1
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
11	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
13	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
14	Washer (1/2 x 7/8 x 3/64")	1	2
15	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8
	Rack, Center Mount Rigging Angle Adjustable	1	1
	Support, Footrest, Center Mount, Black - Short	1	1
	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
	Cleat, Button Head	1	2
	Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	6
	Tube, Extension, Footrest, Short, Black - Right	1	1
	Tube, Extension, Footrest, Short, Black - Left	1	1
	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
	Washer (1/4 x 1/2 x 1/16")	1	1
	Locknut (1/4-20)	1	1
	NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	2
	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
	Washer, Nylon (5/16 x 11/16 x 1/16")	1	2
	Washer (1/2 x 7/8 x 3/64")	1	2
	Spacer, Nylon (1/2 x 3/4 x 1/4")	1	8

Kit, Center Mount Front Rigging, Junior (CTMTJ/CTMT-FJ) ASBA/ADJASBA (9-1/2" - 11" Range)

$502.00

Create/add to Wishlist

See Chart

Added to Cart

Front Rigging Side

Short 9-1/2" - 11" Range

Medium 11" - 15" Range

Long 14" - 18" Range

Right

Note-A

1170677

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Short, Black - Right	1	1

MSRP: $107.00

Note-A

1170679

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Medium, Black - Right	1	1

MSRP: $113.00

Note-A

1170681

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Long, Black - Right	1	1

MSRP: $113.00

Left

Note-A

1170678

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Short, Black - Left	1	1

MSRP: $107.00

Note-A

1170680

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Medium, Black - Left	1	1

MSRP: $113.00

Note-A

1170682

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	2
Cleat, Button Head	1	1
Tube, Extension, Footrest, Long, Black - Left	1	1

MSRP: $113.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	The Extension Tube Kits are used for adjustable width footplate hardware only.

#20 Extension Tube Kits After 12/14/10

N/A

See Chart

Added to Cart

Footplate Side

Small 5-1/4" W x 7-1/2" L

Medium 5-1/2" W x 9-1/2" L

Large 5-7/8" W x 11-1/2" L

Right

Note-A

1170683

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Footplate, Black, Small - Right	1	1
Pad, Footplate, Small - Right	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170685

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Medium - Right	1	1
Pad, Footplate, Medium - Right	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170687

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Large - Right	1	1
Pad, Footplate, Large - Right	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Left

Note-A

1170684

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Small - Left	1	1
Pad, Footplate, Small - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170686

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Medium - Left	1	1
Pad, Footplate, Medium - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170688

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Large - Left	1	1
Pad, Footplate, Large - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	The footplate mounting hardware included is for adjustable width only.

#21 Footplate Kits After 12/14/10

N/A

Assembly Part Notes

Note Code	Definition
A	Includes items 1, 2, 17-20 and the Instruction Sheet
B	Includes items 3-16
C	As of 12/15/10 item #19 was revised to accommodate adjustable width footplate hardware. If footplates are needed see item #21.
D	Not Shown

Catalog Literature

Parts Books for Formula™ Invisible Super Low™ Tilt

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Center Mount Rigging Kit(CTMT-F/CTMT-FL/CTMT-FJ) For ADJASBA Seat - After 7/4/05

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Assembly Part Notes

Catalog Literature
