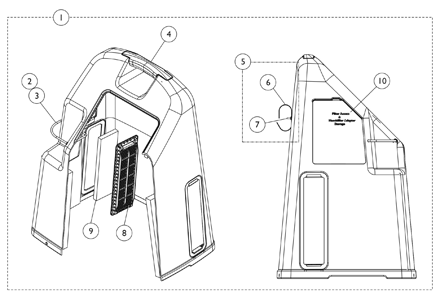

Shroud - Top

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1108803

Cabinet Cover without Tie Wraps

$204.00

A ,B ,C

Create/add to Wishlist

1070050

Tie Wrap (3-29/32" L)

$10.00

Create/add to Wishlist

60125500

Cord, Elastic

$8.00

Create/add to Wishlist

1115868

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
	Handle, Top, Warm Grey	1	1
	Handle, Top, Warm Grey	1	1
	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
4	Handle, Top, Warm Grey	1	1
5	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
4	Handle, Top, Warm Grey	1	1
5	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
4	Handle, Top, Warm Grey	1	1
5	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
	NLA - Screw, Hex Head Tap (1/4-15 x 3/4")	1	2
	Handle, Top, Warm Grey	1	1

Kit, Cabinet Handle

$20.00

Create/add to Wishlist

1172003

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Strap, Hook and Loop	10	1
7	Rivet, Plastic	10	1
	NLA - Retainer, Push On	10	1
6	Strap, Hook and Loop	10	1
7	Rivet, Plastic	10	1
	NLA - Retainer, Push On	10	1
11	Strap, Hook and Loop	10	1
12	Rivet, Plastic	10	1
	NLA - Retainer, Push On	10	1
11	Strap, Hook and Loop	10	1
12	Rivet, Plastic	10	1
	NLA - Retainer, Push On	10	1
11	Strap, Hook and Loop	10	1
12	Rivet, Plastic	10	1
	NLA - Retainer, Push On	10	1
	NLA - Retainer, Push On	10	1
6	Strap, Hook and Loop	10	1
7	Rivet, Plastic	10	1

Package, Power Cord Strap w/ Hardware

$30.00

B ,C

Create/add to Wishlist

1107400

Grid, Filter

$10.00

Create/add to Wishlist

1107412

Filter, Cabinet

$8.00

Create/add to Wishlist

1110766

Door, Filter Access with Foam Gasket

$11.00

Create/add to Wishlist

1112296

NLA - Kit, Packaging w/ Carton, Inserts and Owner''s Manual

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Cabinet and Items 2-9.
B	After 6/28/07, the Hook and Loop Strap are no longer used on the Cabinet Cover Assembly. If Hook and Loop Strap is needed you must order Package, Power Cord Strap w/ Hardware, Part Number 1172003.
C	Not shown.

Catalog Literature

Parts Books for Oxygen Concentrator International Platinum™ S (IRC5LXO2 AWQ)
