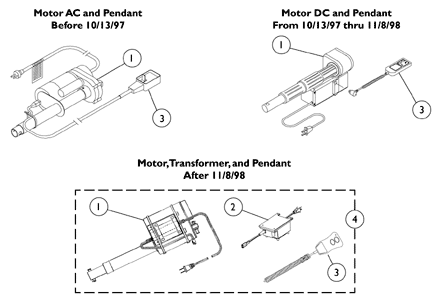

Motor, Transformer and Pendant AC/DC - U.S.
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 52000M330 | NLA - Motor Assembly Kit, AC (Includes: Motor, Pendant, and Instruction Sheet) | 1 | 1 | N/A | H ,A |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 52000M335 | NLA - Kit, Motor DC | 1 | 1 | N/A | C ,B |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 52000M345 | NLA - Kit, Motor, DC with Transformer (Includes: Hitch Pin, Clevis Pin, Washers, Cable Ties, and Instruction Sheet) | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 54000M801 | NLA - Transformer, 115V US/Canada | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 54000M644 | NLA - Pendant, AC with Key Switch | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 52000M356 | NLA - Pendant, DC Motor | 1 | 1 | N/A | C ,B |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 52000M347 | NLA - Pendant, DC Motor - No Longer Available (Includes: Screws, Cable Ties, and Cable Clamps) | 1 | 1 | N/A | D ,I |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 52000M348 | NLA - KIt, Motor, Transformer and Pendant (Includes: Attaching Hardware and Instructions) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 52000M359 | NLA - Kit, Transformer Replacement(Includes: Power Supply and Cable Ties) | 1 | 1 | N/A | F ,G |
Create/add to WishlistCreate/add to Wishlist |
|
| 52000M354 | NLA - Kit, Transformer Bracket (Includes: Linkage Plate, Washers, Screws, Bolts, Nuts, Cable Ties, and Instruction Sheet) | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Before 10/13/97 |
| B | Between 10/14/97 to 11/8/98 |
| C | Motor and Pendant are NLA, order item 4 Motor, Transformer, and Pendant kit. |
| D | After 11/8/98 |
| E | After 12/15/98 |
| F | Not Shown |
| G | When Ordering a Transformer Replacement Kit on chairs built before 12/15/98, a Transformer Bracket Kit should be ordered as well. |
| H | Includes #53000M566. |
| I | Pendant is no longer available. Order Item 4 - 52000M347 as replacement. |
