Frames - Base & Hardware

Print this page

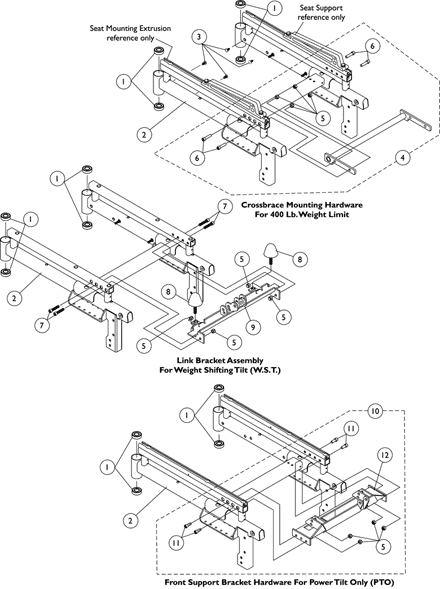

Base Frame and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	40117X006	Bearing (5/8")	1	4	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1079192	NLA - Base Frame with Bearings	1	1	N/A	B ,C ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1058520	NLA - Fastener, Panel Snap-In	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1095622	NLA - Crossbrace with Mounting Hardware	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026158	Locknut (5/16-18)	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1021343	Screw, Socket Head (5/16-18 x 1-1/4")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1021344	Screw, Socket Head (5/16-18 x 1-1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0225100	NLA - Bumper, Tilt	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1098615	NLA - Bracket, Link w/ Caution Decal, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1106551	NLA - Kit, Front Support Bracket Hardware	1	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1086944	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1106393	NLA - Bracket, Support, Front, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Used when shroud option is omitted.
B	Specfiy 24P wet black frame color when ordering
C	Decals not included, see "Packaging, Literature and Decals" page.
D	Includes items 5 and 6
E	For all seat options.
F	Includes items 5, 11 and 12

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
