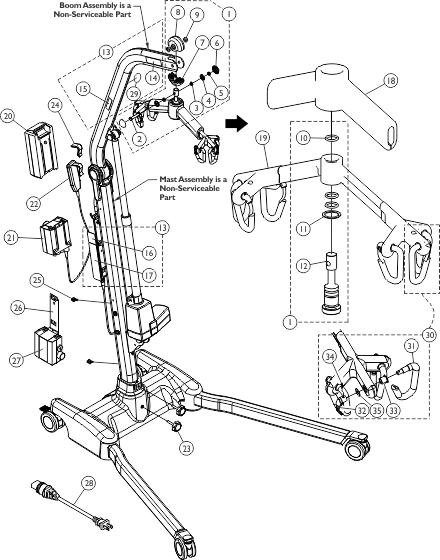

Jasmine Full Body Lift - Labels, Hanger Bar, Battery Pack, Controller and Hand Control (Before 9/2/11)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1161581

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Washer, Caplugs, Boom	1	2
10	O-Ring	1	3
2	Screw, Shoulder Hex Head (3/8-24 x 2", 5/8-16)	1	1
6	Rubber Cover, Screw Cap, Hanger	1	3
11	Washer, Nylon (1-1/8 x 1-1/2 x 1/16")	1	1
7	Rubber Cover, Boom and Hanger, Bottom	1	1
3	Bearing, Flanged (21/32 x 29/32 x 3/16")	1	2
9	Spacer, Nylon (13/32 x 13/16 x 5/16")	1	2
12	Pin, Hanger	1	1
5	Nut, Lock, Hex (5/16-18)	1	1
6	Rubber Cover, Screw Cap, Hanger	1	3
4	Washer, Caplugs, Boom	1	2
10	O-Ring	1	3
12	Pin, Hanger	1	1
8	Rubber Cover, Boom and Hanger, Top	1	1
9	Spacer, Nylon (13/32 x 13/16 x 5/16")	1	2
5	Nut, Lock, Hex (5/16-18)	1	1
7	Rubber Cover, Boom and Hanger, Bottom	1	1
8	Rubber Cover, Boom and Hanger, Top	1	1
2	Screw, Shoulder Hex Head (3/8-24 x 2", 5/8-16)	1	1
3	Bearing, Flanged (21/32 x 29/32 x 3/16")	1	2
11	Washer, Nylon (1-1/8 x 1-1/2 x 1/16")	1	1

Kit, Hanger Bar Hardware

$123.00

Create/add to Wishlist

1161592

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	Label, Warning Bolt Mast	1	1
14	Label, Sling	1	1
29	Decal, Invacare Logo	1	1
15	Decal, Jasmine	1	1
17	Label, Warning, Jasmine, 500 Pound	1	1

NLA - Kit, Label and Decal

N/A

Create/add to Wishlist

1148566

NLA - Pad, Hanger, Bar

N/A

Create/add to Wishlist

1152392

Hanger Bar Assembly

$426.00

Create/add to Wishlist

1152383

Battery Pack

$296.00

Create/add to Wishlist

1156004

Controller (Linak Number: CBJ1-C001-01) Analog Elec.

$384.00

Create/add to Wishlist

1177606

Pendant, Four Channel w/ Hook (Linak Number: HB30006-XX) Analog Elec.

$86.00

Create/add to Wishlist

1148489

Knob, M8

$9.00

Create/add to Wishlist

1161593

Package, Rubber Clip

$59.00

Create/add to Wishlist

1161589

NLA - Package, Screw, Charger Bracket and Mast

N/A

Create/add to Wishlist

1078306

Bracket, Wall Mount Charger

$54.00

Create/add to Wishlist

1152391

Charger, Wall

$234.00

Create/add to Wishlist

1079133

Cord, Power, USA

$20.00

Create/add to Wishlist

1155346

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
35	Washer	6	1
32	Bushing, Bar Hanger	6	1
30	Hook, Bar Hanger	6	1
34	Washer	6	1
31	Bar Hanger Cover Assembly	6	1
31	Hook, Bar Hanger	6	1
33	Bushing, Bar Hanger	6	1
34	Pin, Hook Bar Hanger	6	1
33	Pin, Hook Bar Hanger	6	1
32	Bar Hanger Cover Assembly	6	1

Kit, Clips and Hooks - Jasmine Hanger Bar

$173.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 12.
B	Includes items 14 - 17 and 29.
C	Includes items 31 - 35.

Catalog Literature

Parts Books for Patient Transport Lifts and Slings
