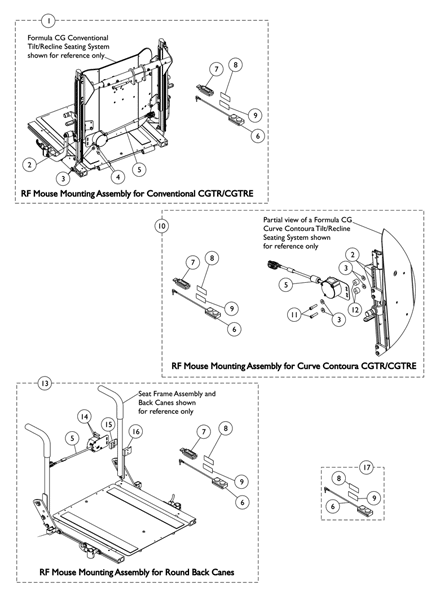

Mouse, MK6i RF Wireless Module - FDX

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1170142

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	T-Nut (1/4-20)	1	2
3	Washer (1/4 x 5/8 x 3/32")	1	2
4	NLA - Screw, Hex Head (1/4-20 x 1-1/2")	1	2
5	NLA - RF Mouse Module Assembly (26" L)	1	1
6	Switch, Push Button Dual	1	1
7	USB, IR/RF Mouse Dongle, Programmed	1	1
8	Hook, Material	1	1
9	Loop, Material	1	1
	Owner''s Manual, RF Mouse	1	1
	Tie Wrap (5-5/8" L)	1	5

NLA - RF Mouse Mounting Assembly w/ T-Nut, Conventional

N/A

Create/add to Wishlist

1163503

USB, IR/RF Mouse Dongle, Programmed

$194.00

Create/add to Wishlist

1170143

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	T-Nut (1/4-20)	1	2
3	Washer (1/4 x 5/8 x 3/32")	1	4
5	NLA - RF Mouse Module Assembly (26" L)	1	1
6	Switch, Push Button Dual	1	1
7	USB, IR/RF Mouse Dongle, Programmed	1	1
8	Hook, Material	1	1
9	Loop, Material	1	1
11	NLA - Screw, Socket Head Cap w/ Patch (1/4-20 x 1")	1	2
12	Spacer (1/4 x 3/4 x 1/2")	1	2
	Owner''s Manual, RF Mouse	1	1
	Tie Wrap (5-5/8" L)	1	5

NLA - RF Mouse Mounting Assembly w/ T-Nut, Contoura

N/A

Create/add to Wishlist

1163503

USB, IR/RF Mouse Dongle, Programmed

$194.00

Create/add to Wishlist

1170141

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - RF Mouse Module Assembly (26" L)	1	1
6	Switch, Push Button Dual	1	1
7	USB, IR/RF Mouse Dongle, Programmed	1	1
8	Hook, Material	1	1
9	Loop, Material	1	1
14	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
15	Half Clamp, Non-Threaded Holes	1	1
16	NLA - Half Clamp, Threaded Holes	1	1
	Tie Wrap (5-5/8" L)	1	5
	Owner''s Manual, RF Mouse	1	1

NLA - RF Mouse Mounting Assembly w/ Clamp

N/A

Create/add to Wishlist

1170125

NLA - RF Mouse Module Assembly (26" L)

N/A

Create/add to Wishlist

1163503

USB, IR/RF Mouse Dongle, Programmed

$194.00

Create/add to Wishlist

1153635

Kit, Switch, Dual Push Button (2PB)

$273.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9, tie wraps and owner's manual.
B	Includes items 2, 3, 5-9, 11, 12, tie wraps and owner's manual.
C	Includes items 5, 6-9 and 14-16, tie wraps and owner's manual.
D	Includes items 6, 8 and 9.

Catalog Literature

Parts Books for Electronics MK6i™
