EQUIPMENT US Site

1

1141667

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bar, Extension, Power Center Mount (16 - 19" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
2	Bar, Extension, Power Center Mount (16 - 19" D)	1	2

Kit, Power Elevating Legrest Mounting Hardware (16-19" D)

1

$187.00

A

Create/add to Wishlist

1

1141668

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bar, Extension, Power Center Mount (19 - 20" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
2	Bar, Extension, Power Center Mount (19 - 20" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4

Kit, Power Elevating Legrest Mounting Hardware (19-20" D)

1

A

Create/add to Wishlist

1

1141669

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bar, Extension, Power Center Mount (21-22" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
2	Bar, Extension, Power Center Mount (21-22" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4

Kit, Power Elevating Legrest Mounting Hardware (21-22" D)

1

A

Create/add to Wishlist

1162805

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4

Kit, Power Center Mount Hardware

1

B

Create/add to Wishlist

10

1162010

Power Center Mount Assembly w/ Footboard

1

$4,660.00

Create/add to Wishlist

10

1162011

Power Center Mount Assembly w/ Footboard - Long

1

Create/add to Wishlist

10

1162012

Power Center Mount Assembly w/ Footplate (Pair)

1

$4,589.00

Create/add to Wishlist

10

1162013

Power Center Mount Assembly w/ Footplate - Long (Pair)

1

Create/add to Wishlist

11

1141665

Bracket, MPCTMT Power Center Mount, Black

1

$110.00

Create/add to Wishlist

12

1163373

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
26	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2
32	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
17	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	4
25	Pad, Calf (4-1/2" W x 7-1/4" L)	1	2

Kit, Calf Pad (Pair)

1

$299.00

C

Create/add to Wishlist

13

1164849

Footboard w/ Hardware Assembly, MPCTMT/MPCTMT-L

1

$575.00

D

Create/add to Wishlist

14

1164309

Footplate w/ Hardware Assembly, MPCTMT/MPCTMT-L

1

$690.00

E

Note Code	Definition
A	Includes items 2-9.
B	Not shown. Includes items 4-9.
C	Includes calf pads and attaching hardware.
D	Includes footboard and attaching hardware.
E	Includes footplates and attaching hardware.

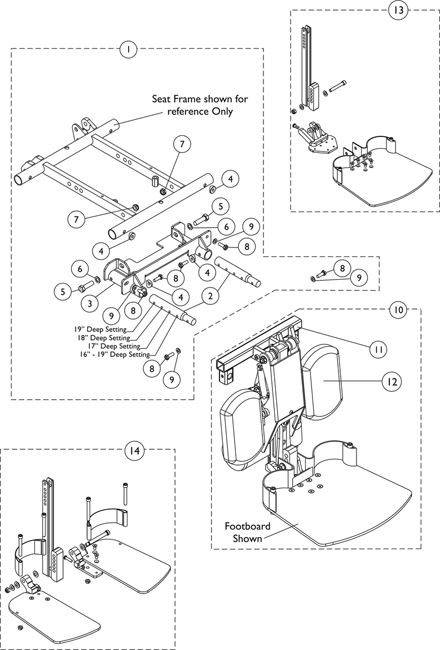

Front Riggings - Power Elevating Legrest (MPCTMT/MPCTMT-L) (After 12/31/08) - TDX SC
