1 |
1162442

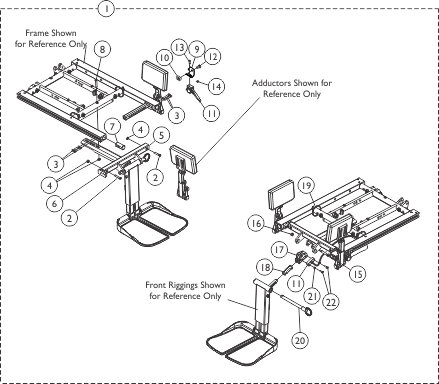

| Item |
Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
2 |
Screw, Socket Head (1/4-20 x 1-1/4") |
1 |
2 |
|
3 |
Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") |
1 |
4 |
|
4 |
Locknut (1/4-20) |
1 |
3 |
|
5 |
Support, Center Mount Rigging, Black (19"-22" D) |
1 |
1 |
|
6 |
Support, Seat Pan (16-24" Wide) |
1 |
2 |
|
7 |
Plug, Support |
1 |
2 |
|
8 |
Screw, Socket Button Head (1/4-20 x 1-1/2") |
1 |
1 |
|
9 |
Bracket, Release Handle Mounting, Black |
1 |
1 |
|
10 |
T-Nut (5/16-18) |
1 |
1 |
|
11 |
NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2") |
1 |
1 |
|
12 |
Cable/Brake Assembly |
1 |
1 |
|
13 |
NLA - Screw, Socket Head (#10-32 x 1/2") |
1 |
1 |
|
14 |
Nut, Square (#10-32) |
1 |
1 |
|
15 |
Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20) |
1 |
1 |
|
16 |
Locknut (1/4-20) |
1 |
1 |
|
17 |
Housing, Ratchet |
1 |
1 |
|
18 |
Bearing, Glide |
1 |
2 |
|
19 |
Tie Wrap (11-1/2" L) |
1 |
2 |
|
20 |
NLA - Pin, Quick Release (5" Long) |
1 |
1 |
|
21 |
NLA - Washer, Lock (3/16 x 5/16 x 1/32") |
1 |
2 |
|
22 |
Screw, Phillips Pan Head (#10-32 x 11/16") |
1 |
2 |
|
9 |
Bracket, Release Handle Mounting, Black |
1 |
1 |
|
10 |
T-Nut (5/16-18) |
1 |
1 |
|
11 |
NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2") |
1 |
1 |
|
12 |
Cable/Brake Assembly |
1 |
1 |
|
13 |
NLA - Screw, Socket Head (#10-32 x 1/2") |
1 |
1 |
|
14 |
Nut, Square (#10-32) |
1 |
1 |
|
15 |
Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20) |
1 |
1 |
|
16 |
Locknut (1/4-20) |
1 |
1 |
|
17 |
Housing, Ratchet |
1 |
1 |
|
18 |
Bearing, Glide |
1 |
2 |
|
19 |
Tie Wrap (11-1/2" L) |
1 |
2 |
|
20 |
NLA - Pin, Quick Release (5" Long) |
1 |
1 |
|
21 |
NLA - Washer, Lock (3/16 x 5/16 x 1/32") |
1 |
2 |
|
22 |
Screw, Phillips Pan Head (#10-32 x 11/16") |
1 |
2 |
|
2 |
Screw, Socket Head (1/4-20 x 1-1/4") |
1 |
2 |
|
3 |
Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") |
1 |
4 |
|
4 |
Locknut (1/4-20) |
1 |
3 |
|
5 |
Support, Center Mount Rigging, Black (19"-22" D) |
1 |
1 |
|
6 |
Support, Seat Pan (16-24" Wide) |
1 |
2 |
|
7 |
Plug, Support |
1 |
2 |
|
8 |
Screw, Socket Button Head (1/4-20 x 1-1/2") |
1 |
1 |
|
2 |
Screw, Socket Head (1/4-20 x 1-1/4") |
1 |
2 |
|
3 |
Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") |
1 |
4 |
|
4 |
Locknut (1/4-20) |
1 |
3 |
|
5 |
Support, Center Mount Rigging, Black (19"-22" D) |
1 |
1 |
|
6 |
Support, Seat Pan (16-24" Wide) |
1 |
2 |
|
7 |
Plug, Support |
1 |
2 |
|
8 |
Screw, Socket Button Head (1/4-20 x 1-1/2") |
1 |
1 |
|
9 |
Bracket, Release Handle Mounting, Black |
1 |
1 |
|
10 |
T-Nut (5/16-18) |
1 |
1 |
|
11 |
NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2") |
1 |
1 |
|
12 |
Cable/Brake Assembly |
1 |
1 |
|
13 |
NLA - Screw, Socket Head (#10-32 x 1/2") |
1 |
1 |
|
14 |
Nut, Square (#10-32) |
1 |
1 |
|
15 |
Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20) |
1 |
1 |
|
16 |
Locknut (1/4-20) |
1 |
1 |
|
17 |
Housing, Ratchet |
1 |
1 |
|
18 |
Bearing, Glide |
1 |
2 |
|
19 |
Tie Wrap (11-1/2" L) |
1 |
2 |
|
20 |
NLA - Pin, Quick Release (5" Long) |
1 |
1 |
|
21 |
NLA - Washer, Lock (3/16 x 5/16 x 1/32") |
1 |
2 |
|
22 |
Screw, Phillips Pan Head (#10-32 x 11/16") |
1 |
2 |
|
NLA - Kit, Adductor Mounting Hardware, Center Mount Front - Long |
1 |
1 |
N/A |
A |
|
