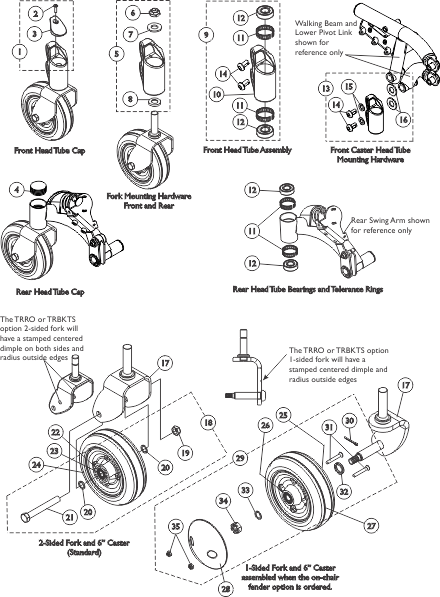

Caster & Forks - Front & Rear (6")
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
1142342
|
Kit, Cap with Screw, Front Head Tube - Right | 1 | 1 |
$11.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 1 |
1142343
|
Kit, Cap with Screw, Front Head Tube - Left | 1 | 1 |
$11.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 1110709 | Cap, Head Tube, Black | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1110684
|
Kit, Fork Mounting Hardware | 1 | 1 |
$19.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 9 |
1142340
|
Kit, Front Head Tube Assembly - Right | 1 | 1 |
$150.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 9 |
1142341
|
Kit, Front Head Tube Assembly - Left | 1 | 1 |
$150.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1110717 | Ring, Tolerance | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 40117X006 | Bearing (5/8") | 1 | 2 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 |
1154107
|
Kit, Front Head Tube Mounting Hardware | 1 | 1 |
$13.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1110683 | Fork and Stem, 2-Sided - Right/Left | 1 | 1 |
$100.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 1141020 | Fork and Stem, 2-Sided, TRRO/TRBKTS - Right/Left | 1 | 1 |
$100.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1113123 | Fork and Stem, 1-Sided - Right | 1 | 1 |
$121.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1113124 | Fork and Stem, 1-Sided - Left | 1 | 1 |
$121.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1141005 | Fork and Stem, 1-Sided, TRRO/TRBKTS - Right | 1 | 1 |
$121.00 |
E ,H |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1141006 | Fork and Stem, 1-Sided, TRRO/TRBKTS - Left | 1 | 1 |
$121.00 |
E ,H |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1110708 | Kit, Caster Mounting Hardware | 1 | 1 |
$19.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
| 19 | 1025734 | Locknut (7/16-20) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 20 | 1025724 | Washer, Steel (15/32 x 5/8 x 3/64") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 21 | 1025726 | Screw, Hex Head (7/16-20 x 3-1/4") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 22 | 1006049 | Bearing (7/16") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 23 | 1020592 | Spacer, Bearing (7/16 x 5/8 x 1-3/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 24 | 1115179 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") | 1 | 1 |
$79.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 24 | 1122066 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair) | 2 | 1 |
$118.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 25 | 40117X006 | Bearing (5/8") | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 26 | 1006049 | Bearing (7/16") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 27 | 1110715 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") | 1 | 1 |
$91.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
| 27 | 1122067 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair) | 2 | 1 |
$107.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
| 28 | 1105854 | Cap, Hub, Black | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 29 | 1108561 | Hardware, Caster | 1 | 1 |
$31.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
| 30 | 1105852 | Pin, Cotter (7/64 x 1") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 31 | 1115246 | Screw, Phillips Flat Head (M6 x 1 x 45mm) | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 32 | 1108005 | Spacer, Steel (5/8 x 7/8 x 1/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 33 | 1025724 | Washer, Steel (15/32 x 5/8 x 3/64") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 34 | 1107168 | NLA - Nut, Hex Slotted (7/16-20) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 35 | 1107698 | Locknut (M6 x 1) | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2 and 3 |
| B | Includes items 6-8 |
| C | Includes items 10-12 and 14 |
| D | Includes items 14-16 |
| E | When 1-sided forks are used, they are assembled in the front and rear of the power chair |
| F | Includes items 19-21 |
| G | Includes items 30-35 |
| H | The TRRO or TRBKTS option 1-sided fork will have a stamped centered dimple and radius outside edges |
| I | The TRRO or TRBKTS option 2-sided fork will have stamped centered dimple on both sides and radius outside edges |
| J | Includes the Wheel Assembly plus items 22 and 23 also. Used only with the two sided forks. |
| K | Includes the Wheel Assembly plus items 25 and 26 also. Used only with the one sided forks. |
