Front Riggings - Center Mount Rigging (CTMT-FJ with CTMTFB One PC Flip-Up Footboard) Before 12/31/09

Print this page

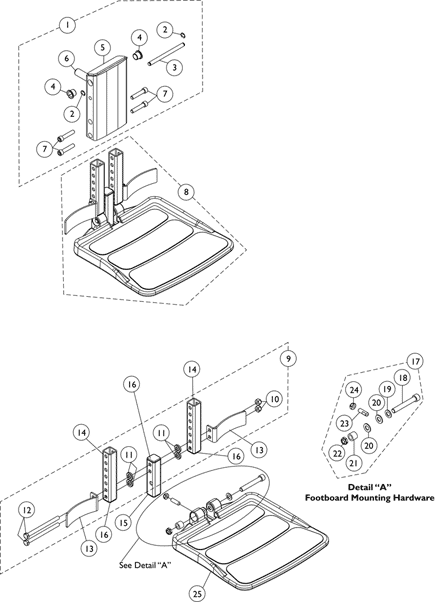

Front Rigging - Center Mount Rigging (CTMT-FJ with CTMTFB)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1154209

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Ring, Retainer (1/4 x 1/2 x 1/64")	1	2
3	NLA - Pin, Angle, Adjustable, ASBA	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	NLA - Support, Junior Legrest (CTMTJ/CTMT-FJ)	1	1
6	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
2	NLA - Ring, Retainer (1/4 x 1/2 x 1/64")	1	2
3	NLA - Pin, Angle, Adjustable, ASBA	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	NLA - Support, Junior Legrest (CTMTJ/CTMT-FJ)	1	1
6	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
2	NLA - Ring, Retainer (1/4 x 1/2 x 1/64")	1	2
3	NLA - Pin, Angle, Adjustable, ASBA	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	NLA - Support, Junior Legrest (CTMTJ/CTMT-FJ)	1	1
6	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4
2	NLA - Ring, Retainer (1/4 x 1/2 x 1/64")	1	2
3	NLA - Pin, Angle, Adjustable, ASBA	1	1
4	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2
5	NLA - Support, Junior Legrest (CTMTJ/CTMT-FJ)	1	1
6	Rack, Center Mount Rigging Angle Adjustable	1	1
7	Screw, Socket Head (5/16-18 x 1-1/2")	1	4

NLA - Legrest Support Assembly, Center Mount Rigging

N/A

Create/add to Wishlist

1021344

Screw, Socket Head (5/16-18 x 1-1/2")

$8.00

Create/add to Wishlist

1154208

NLA - Footboard Assembly, CTMTFB (For CTMT-FJ 9-1/4 - 12")

Create/add to Wishlist

1144608

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	Locknut (5/16-18)	1	2
13	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
14	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
10	Locknut (5/16-18)	1	2
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2
10	Locknut (5/16-18)	1	2
11	NLA - Bushing, Actuator Motor (3/8 x 3/4 x 5/32")	1	4
12	NLA - Screw, Hex Head (5/16-18 x 4")	1	2

NLA - Kit, Heel Stop and Extension Tube Mounting Hardware

N/A

Create/add to Wishlist

1153789

Bracket, Heel Stop, Black

Create/add to Wishlist

1154108

Tube, Extension w/ Cap, Black

Create/add to Wishlist

1144607

NLA - Tube, Vertical Support with Caps

N/A

Create/add to Wishlist

1144609

Package, End Cap (1" Square)

Create/add to Wishlist

1147134

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Locknut, Low Profile (3/8-16)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Bushing (3/8 x 5/8 x 1/2")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
19	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
21	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
22	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Locknut (5/16-18)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
21	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
20	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
26	Locknut (5/16-18)	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
24	Locknut (5/16-18)	1	1
21	Bushing (3/8 x 5/8 x 1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
23	Bushing (3/8 x 5/8 x 1/2")	1	1
24	Locknut, Low Profile (3/8-16)	1	1
25	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
3	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
4	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
5	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
6	Bushing (3/8 x 5/8 x 1/2")	1	1
7	Locknut, Low Profile (3/8-16)	1	1
8	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
9	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
22	Locknut, Low Profile (3/8-16)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
2	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
3	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
4	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
5	Bushing (3/8 x 5/8 x 1/2")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
8	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
15	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
16	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
17	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
18	Bushing (3/8 x 5/8 x 1/2")	1	1
19	Locknut, Low Profile (3/8-16)	1	1
20	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
21	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1
18	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
19	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
20	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
21	Bushing (3/8 x 5/8 x 1/2")	1	1
22	Locknut, Low Profile (3/8-16)	1	1
23	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1
24	Locknut (5/16-18)	1	1

Kit, Footboard Mounting Hardware

$40.00

Create/add to Wishlist

1114311

Footboard w/ Cover (11-1/4" W x 11-1/2" L)

$327.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7
B	Includes items 9, 13, 14, 15, 17 and 25
C	Includes items 10-12
D	Vertical Support Tube includes Tube Caps at both ends
E	Includes items 18-24

Catalog Literature

Parts Books for Formula™CG Tilt (CGT) Powered Seating

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Center Mount Rigging (CTMT-FJ with CTMTFB One PC Flip-Up Footboard) Before 12/31/09

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
