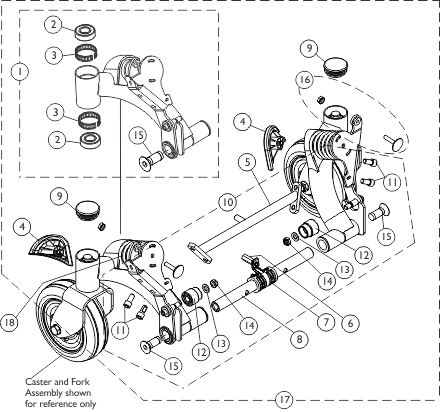

Pivot Assembly - Rear
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
8881166118
|
Swing Arm Assembly w/ Hardware, Color, Rear - Right | 1 | 1 | A ,B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 |
8881166119
|
Swing Arm Assembly w/ Hardware, Color, Rear - Left | 1 | 1 | A ,B |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 40117X006 | Bearing (5/8") | 1 | 2 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1110717 | Ring, Tolerance | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1150988 | Cap, Rear, Black - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 4 | 1150989 | Cap, Rear, Black - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 5 | 1149595 | NLA - Crossmember, Pivot, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1151617 | NLA - Stand-Off (10-32 x 1") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1144672 | Center Bushing Assembly | 1 | 1 |
$118.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1149238 | NLA - Bar, Pivot | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1155019 | Bar, Pivot | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 9 | 1110709 | Cap, Head Tube, Black | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 |
1145067
|
Kit, Pivot Assembly Hardware | 1 | 1 |
$19.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 16 | 1151949 | Kit, Elevator Bolt w/ Keps Nut (1/4-20) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 8881149284 | NLA - Kit, Rear Pivot Assembly (Color) (For TDX SC/Spree) | 1 | 1 | N/A | D ,B |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1151586 | NLA - Spring, Yellow, Heavy Duty | 1 | 2 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1151587 | NLA - Spring, Yellow, Non-Heavy Duty | 1 | 2 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes Swing Arm and items 2,3 and 15 |
| B | Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints." |
| C | Includes items 11-15 and (part # 1146631 Nylon Spacers - Not Shown. These spacers are used for TDX SP models only. Disregard for TDX SC and SPREE models). |
| D | Includes items 1, 4-10 and 16 |
| E | Used for all TDX SC models and TDX SPREE with Formula CG Tilt |
| F | Used for all TDX SPREE models except TDX SPREE with Formula CG Tilt |
