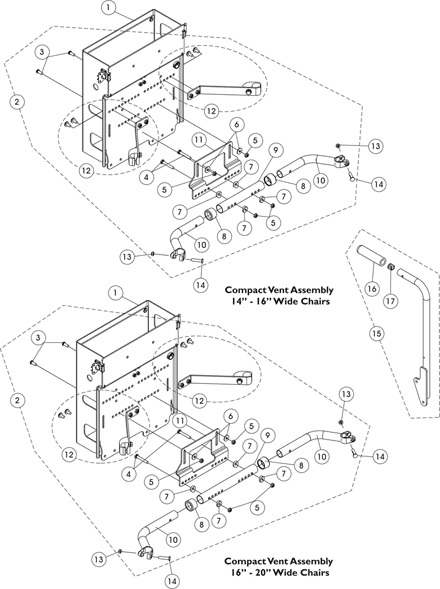

Accessories - Compact Vent Assembly

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1162939

Compact Vent Assembly

$1,461.00

Create/add to Wishlist

1154127

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Washer (1/4 x 23/32 x 1/16")	1	2
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
11	Bracket, Compact Vent Mounting, Black	1	1
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Handle, Spreader Bar (14 - 16" W)	1	2
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
5	Locknut (1/4-20)	1	4
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	4
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable (14 - 16" W)	1	1
10	Handle, Spreader Bar (14 - 16" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1

NLA - Kit, Compact Vent Mounting Hardware (14 - 16" Wide)

Create/add to Wishlist

1154128

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
5	Locknut (1/4-20)	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
3	Screw, Socket Button Head (1/4-20 x 5/8")	1	2
4	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
5	Locknut (1/4-20)	1	2
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1
6	Washer (1/4 x 23/32 x 1/16")	1	2
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	Tube, Spreader Bar, Adjustable, Black (16 - 20" W)	1	1
10	Handle, Spreader Bar (16 - 20" W)	1	2
11	Bracket, Compact Vent Mounting, Black	1	1
12	Compact Vent Mounting Strap Assembly and Hardware (Pair)	2	1

NLA - Kit, Compact Vent Mounting Hardware (16 - 20" Wide)

Create/add to Wishlist

1025730

Locknut (5/16-24)

$8.00

Create/add to Wishlist

1031026

Screw w/ Lug (5/16-24 x 1-3/8")

$10.00

Create/add to Wishlist

1160743

NLA - Back Cane Assembly, w/ Short Grip, w/o 10 Degree Bend, Black - Right (18" H)

N/A

Create/add to Wishlist

1160744

NLA - Back Cane Assembly, w/ Short Grip, w/o 10 Degree Bend, Black - Left (18" H)

N/A

Create/add to Wishlist

1086460

Grip, Foam, Hand (4-1/2" L)

$12.00

Create/add to Wishlist

1134426

Package, Plug Button, Black (3/4")

$20.00

Create/add to Wishlist

1154288

NLA - Instruction Sheet, Compact Vent Assembly Installation

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	The Compact Vent Assembly is sold complete. individual components are non-serviceable
B	Includes items 3-12 and used for 14" - 16" wide chairs
C	Includes items 3-12 and used for 16" - 20" wide chairs
D	Includes the Back Cane and items 16 and 17. The 18" High Back Cane Assembly with short grip is used when a Compact Vent Assembly is ordered
E	Not Shown
