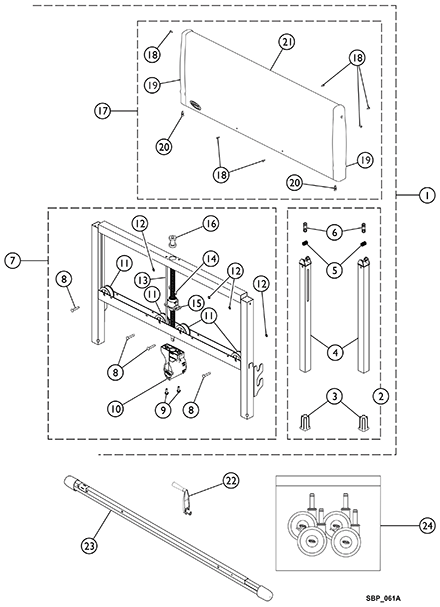

19. Bed Ends - Manual, Full or Semi Electric (5301IVC)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not Shown. |
| B | Includes: Items 1-24 and Packaging. This Kit contains (1) assembled Bed End, (1) Crank Handle, (1) Drive Shaft, (4) Casters and Packaging. |
| C | When Bed End Assembly (Pt.#1112668) is used for a Manual or Semi-Electric Foot End, Part Numbers 7000M585 and 1116636 are required. See Pt.#1121762 for complete kit. |
| D | Includes: Items 2 - 21 and Bed End Frame (Not Shown) |
| E | Includes: Items 3 - 6 |
| F | Includes: Items 8 - 16 |
| G | Includes: Items 18 - 21 |
| H | All service parts gearbox housings are made of zinc. |
| J | All bed products designated "Government" models remain zinc, all others are to be nylon. |
| K | Includes Non-Locking Casters (2) and Locking Casters (2). |
| L | Not shown individually on the illustration. |
| M | This item is No Longer Available. Please order the following items when replacing this item: 1112668 (Item 1), 1116636 (Item 22), 1123550 (Item 24), and 7000M585 (Item 23). |
| N | Item # 7 1130787 is NLA. See item #1 1112668 as a replacement. |
