EQUIPMENT US Site

1

8881053570

Kit, Arm Pad w/ Screws, Desk Length (Pair)

2

1

$53.00

A

Create/add to Wishlist

1

8881053571

Kit, Arm Pad w/ Screws, Full Length (Pair)

2

1

$53.00

A

Create/add to Wishlist

2

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

2

1

$13.00

Create/add to Wishlist

3

1027095

Plug Button, Black (7/8")

1

2

$9.20

Create/add to Wishlist

4

1035614

Plug Button, Black (5/8")

1

3

$9.00

Create/add to Wishlist

5

1038462

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Tube, Armrest, Desk, Black - Right	1	1
	Plug Button, Black (7/8")	1	2
	Plug Button, Black (5/8")	1	3
	Tube, Armrest, Desk, Black - Right	1	1
3	Plug Button, Black (7/8")	1	2
4	Plug Button, Black (5/8")	1	3

Armrest Assembly, Space Saver Desk Length, Black - Right

1

$44.00

Create/add to Wishlist

5

1038463

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Tube, Armrest, Desk, Black - Left	1	1
	Plug Button, Black (7/8")	1	2
	Plug Button, Black (5/8")	1	3
	Tube, Armrest, Desk, Black - Left	1	1
3	Plug Button, Black (7/8")	1	2
4	Plug Button, Black (5/8")	1	3

Armrest Assembly, Space Saver Desk Length, Black - Left

1

$44.00

Create/add to Wishlist

5

1038466

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Tube, Arm, Black - Right	1	1
	Plug Button, Black (7/8")	1	2
	Plug Button, Black (5/8")	1	3
	Tube, Arm, Black - Right	1	1
3	Plug Button, Black (7/8")	1	2
4	Plug Button, Black (5/8")	1	3

Armrest Assembly, Space Saver Full Length, Black - Right

1

$44.00

Create/add to Wishlist

5

1038467

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Tube, Arm, Black - Left	1	1
	Plug Button, Black (7/8")	1	2
	Plug Button, Black (5/8")	1	3
	Tube, Arm, Black - Left	1	1
3	Plug Button, Black (7/8")	1	2
4	Plug Button, Black (5/8")	1	3

Armrest Assembly, Space Saver Full Length, Black - Left

1

$44.00

Create/add to Wishlist

6

1036150

Anti-Rattle

1

2

$8.00

Create/add to Wishlist

7

1090768

Kit, Lock Handle w/Rivets (Pair)

2

1

$16.00

Create/add to Wishlist

8

47471X074

Spring, Arm Lock

1

$8.00

Create/add to Wishlist

9

47471X068

Pin, Locking

1

$8.00

Create/add to Wishlist

10

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

11

1036484

Plug, Armrest, Black (3/4") (18GA)

1

$9.00

Create/add to Wishlist

12

1018225

Spring, Torsion with Button Lock

1

$8.00

Create/add to Wishlist

13

1015450

Handle, Quad Release

1

$8.00

Create/add to Wishlist

14

1058915

NLA - Insert, Rear Arm Tube

1

N/A

Create/add to Wishlist

15

1064129

Guard, Clothing

1

$30.00

B

Create/add to Wishlist

16

1020022

Screw, Phillips Pan Head Tap (#6-20 x 3/8")

1

2

$10.00

Create/add to Wishlist

17

1057126

Arm Base Assembly, Adjustable Height, Black - Right

1

C

Create/add to Wishlist

17

1057127

Arm Base Assembly, Adjustable Height, Black - Left

1

C

Create/add to Wishlist

18

1029583

NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")

1

N/A

Create/add to Wishlist

19

16720X004

Screw, Hex Head (1/4-20 x 1-1/2")

1

$10.00

Create/add to Wishlist

20

60275X000

Locknut (1/4-20)

1

2

$10.00

Create/add to Wishlist

21

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

2

$8.00

Create/add to Wishlist

22

1091072

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
26	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
27	Locknut (1/4-20)	1	6
28	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
29	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
11	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
12	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
13	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
14	Locknut (1/4-20)	1	6
	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
	Locknut (1/4-20)	1	6
18	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
19	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
20	Locknut (1/4-20)	1	6
21	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4

Hardware, Armrest

1

$38.00

D

Note Code	Definition
A	Specify U67 upholstery color when ordering.
B	Right/Left
C	Includes items 6 thru 16
D	Includes items 18 thru 21

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

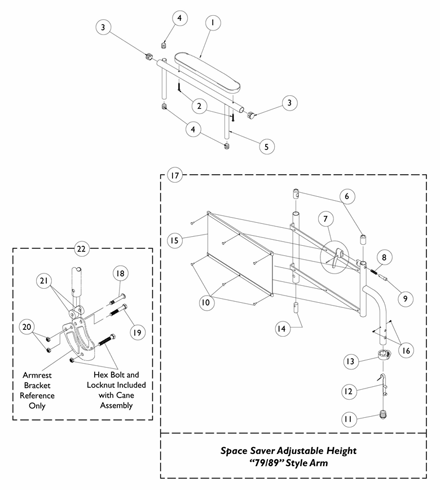

Arms - Space Saver Adjustable Height Arms
