1

8881130809

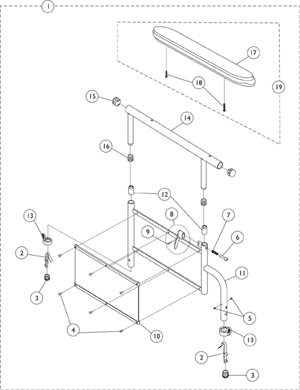

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Right	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	2
13	Handle, Quad Release	1	2
14	Tube, Armrest, Full Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Right	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	2
13	Handle, Quad Release	1	2
14	Tube, Armrest, Full Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
16	Plug Button, Black (5/8")	1	2
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1

Kit, Armrest, Full Length, Black - Right (Style 19JY)

1

$164.00

A ,D

Create/add to Wishlist

4

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

10

1068511

Guard, Clothing

1

$29.00

Create/add to Wishlist

1

8881130810

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Left	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	2
13	Handle, Quad Release	1	2
14	Tube, Armrest, Full Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Left	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	2
13	Handle, Quad Release	1	2
14	Tube, Armrest, Full Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1

Kit, Armrest, Full Length, Black - Left (Style 19JY)

1

$164.00

A ,D

Create/add to Wishlist

4

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

10

1068511

Guard, Clothing

1

$29.00

Create/add to Wishlist

1

8881130807

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Right	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	1
13	Handle, Quad Release	1	1
14	Tube, Armrest, Desk Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
12	Anti-Rattle	1	1
13	Handle, Quad Release	1	1
14	Tube, Armrest, Desk Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Right	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1

Kit, Armrest, Desk Length, Black - Right (Style 29JY)

1

$164.00

A ,D

Create/add to Wishlist

4

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

10

1068511

Guard, Clothing

1

$29.00

Create/add to Wishlist

1

8881130808

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Left	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	1
13	Handle, Quad Release	1	1
14	Tube, Armrest, Desk Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
17	NLA - Arm Pad, Desk Length w/ Law Label	1	1
2	Spring, Torsion with Button Lock	1	2
3	Plug, Armrest, Black (3/4") (18GA)	1	2
4	Rivet	1	6
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2
6	Pin, Locking	1	1
7	Spring, Arm Lock	1	1
8	Handle, Lock, Black - Left	1	1
9	Rivet, Tubular	1	1
10	Guard, Clothing	1	1
11	Arm Assemlby, Adjustable Height (2" Lower)	1	1
12	Anti-Rattle	1	1
13	Handle, Quad Release	1	1
14	Tube, Armrest, Desk Length, Black (2" Lower)	1	1
15	Plug Button, Black (7/8")	1	2
16	Plug Button, Black (5/8")	1	2
17	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	NLA - Arm Pad, Desk Length w/ Law Label	1	1

Kit, Armrest, Desk Length, Black - Left (Style 29JY)

1

$164.00

A ,D

Create/add to Wishlist

4

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

10

1068511

Guard, Clothing

1

$29.00

Create/add to Wishlist

19

8881127509

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
24	NLA - Pad, Arm, Full Length w/ Law Label	1	1
25	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
49	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
26	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
27	NLA - Pad, Arm, Full Length w/ Law Label	1	1
2	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
2	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
	NLA - Pad, Arm, Full Length w/ Law Label	1	1
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
8	NLA - Pad, Arm, Full Length w/ Law Label	1	1
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
14	NLA - Pad, Arm, Full Length w/ Law Label	1	1
	NLA - Pad, Arm, Full Length w/ Law Label	1	1
	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
48	NLA - Pad, Arm, Full Length w/ Law Label	1	1
7	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
17	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
18	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	NLA - Pad, Arm, Full Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
15	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	NLA - Pad, Arm, Full Length w/ Law Label	1	1
10	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
10	NLA - Pad, Arm, Full Length w/ Law Label	1	1
9	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	NLA - Pad, Arm, Full Length w/ Law Label	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
29	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
9	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
20	NLA - Pad, Arm, Full Length w/ Law Label	1	1
19	NLA - Pad, Arm, Full Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Pad, Arm, Full Length w/ Law Label	1	1
4	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
21	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
28	NLA - Pad, Arm, Full Length w/ Law Label	1	1

Kit, Arm Pad w/Screws - Full Length

1

$29.00

B ,D

Create/add to Wishlist

19

8881127510

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
19	NLA - Arm Pad, Desk Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
48	NLA - Arm Pad, Desk Length w/ Law Label	1	1
22	NLA - Arm Pad, Desk Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
25	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
26	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
27	NLA - Arm Pad, Desk Length w/ Law Label	1	1
2	NLA - Arm Pad, Desk Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
2	NLA - Arm Pad, Desk Length w/ Law Label	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
17	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
3	NLA - Arm Pad, Desk Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Arm Pad, Desk Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Arm Pad, Desk Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Arm Pad, Desk Length w/ Law Label	1	1
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Arm Pad, Desk Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	NLA - Arm Pad, Desk Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Arm Pad, Desk Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
	NLA - Arm Pad, Desk Length w/ Law Label	1	1
	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
8	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	NLA - Arm Pad, Desk Length w/ Law Label	1	1
22	NLA - Arm Pad, Desk Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
17	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
18	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
19	NLA - Arm Pad, Desk Length w/ Law Label	1	1
18	NLA - Arm Pad, Desk Length w/ Law Label	1	1
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	NLA - Arm Pad, Desk Length w/ Law Label	1	1
23	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
14	NLA - Arm Pad, Desk Length w/ Law Label	1	1
15	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	NLA - Arm Pad, Desk Length w/ Law Label	1	1
10	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Arm Pad, Desk Length w/ Law Label	1	1
21	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
29	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	1
9	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
24	NLA - Arm Pad, Desk Length w/ Law Label	1	1
49	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
28	NLA - Arm Pad, Desk Length w/ Law Label	1	1
8	NLA - Arm Pad, Desk Length w/ Law Label	1	1
19	NLA - Arm Pad, Desk Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
19	NLA - Arm Pad, Desk Length w/ Law Label	1	1
20	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
3	NLA - Arm Pad, Desk Length w/ Law Label	1	1
4	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	1	2
20	NLA - Arm Pad, Desk Length w/ Law Label	1	1
8	NLA - Arm Pad, Desk Length w/ Law Label	1	1
10	NLA - Arm Pad, Desk Length w/ Law Label	1	1

Kit, Arm Pad w/Screws - Desk Length

1

$29.00

B ,D

Create/add to Wishlist

7100053

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
33	Handle, Lock, Black - Right	1	1
35	Pin, Locking	1	2
34	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	1
	Pin, Locking	1	1
	Spring, Arm Lock	1	1
6	Spring, Arm Lock	1	2
7	Pin, Locking	1	2
	Spring, Arm Lock	1	2
7	Spring, Arm Lock	1	1
32	Rivet, Tubular	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Right	1	1
	Spring, Arm Lock	1	2
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	1
	Pin, Locking	1	1
	Spring, Arm Lock	1	1
	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Pin, Locking	1	2
	Rivet, Tubular	1	2
5	Rivet, Tubular	1	2
	Rivet, Tubular	1	2
5	Handle, Lock, Black - Right	1	1
	Rivet, Tubular	1	2
	Handle, Lock, Black - Right	1	1
	Spring, Arm Lock	1	2
8	Pin, Locking	1	1
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
4	Handle, Lock, Black - Right	1	1
	Handle, Lock, Black - Right	1	1
	Pin, Locking	1	2
	Handle, Lock, Black - Right	1	1
6	Rivet, Tubular	1	1

Arm Lock Assembly, Black - Right

1

$38.00

C

Create/add to Wishlist

7100054

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
32	Rivet, Tubular	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
35	Pin, Locking	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	1
	Pin, Locking	1	1
	Spring, Arm Lock	1	1
	Handle, Lock, Black - Left	1	1
	Spring, Arm Lock	1	2
33	Handle, Lock, Black - Left	1	1
34	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Pin, Locking	1	2
	Rivet, Tubular	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	1
	Pin, Locking	1	1
	Spring, Arm Lock	1	1
	Handle, Lock, Black - Left	1	1
	Rivet, Tubular	1	2
	Pin, Locking	1	2
	Spring, Arm Lock	1	2
	Handle, Lock, Black - Left	1	1
	Pin, Locking	1	2
5	Handle, Lock, Black - Left	1	1
7	Spring, Arm Lock	1	2
4	Handle, Lock, Black - Left	1	1
	Handle, Lock, Black - Left	1	1
	Pin, Locking	1	2
6	Rivet, Tubular	1	2
8	Pin, Locking	1	2
5	Rivet, Tubular	1	2
6	Spring, Arm Lock	1	2
	Rivet, Tubular	1	2
	Rivet, Tubular	1	2
	Spring, Arm Lock	1	2
	Spring, Arm Lock	1	2
7	Pin, Locking	1	2
	Pin, Locking	1	2
	Rivet, Tubular	1	2

Arm Lock Assembly, Black - Left

1

$38.00

C

Note Code	Definition
A	Includes items 2-18.
B	Includes items 17 and 18.
C	Not shown. Includes items 6-9.
D	Specify upholstery color when ordering. See page titled "Frame Finishes, Upholstery Colors, Decals, Literature and Packaging".

Arms - Conventional Adjustable Height - 9000XDT & 9000XT Recliner - 19JY & 29JY

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Arms - Conventional Adjustable Height - 9000XDT & 9000XT Recliner - 19JY & 29JY

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.
