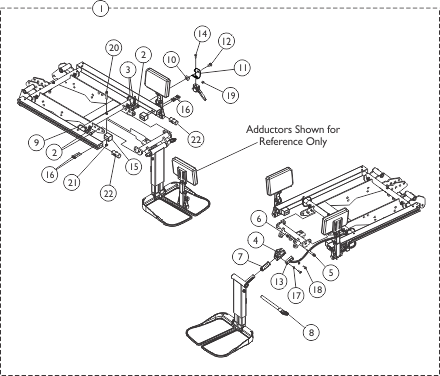

1162430

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Spacer (5/16 x 7/16 x 3/8")	1	2
4	Housing, Ratchet	1	1
5	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
6	Locknut (1/4-20)	1	1
7	Bearing, Glide	1	2
8	NLA - Pin, Quick Release (5" Long)	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	T-Nut (5/16-18)	1	1
11	Bracket, Release Handle Mounting, Black	1	1
12	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
13	Cable/Brake Assembly	1	1
14	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
15	Block, Threaded	1	2
16	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
17	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
18	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
19	Nut, Square (#10-32)	1	1
20	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
21	Locknut (1/4-20)	1	1
22	Plug, Support	1	2

Kit, Adductor Mounting Hardware, Center Mount Front Riggings

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Note Code	Definition
A	Includes items 2-22.
