8881162206

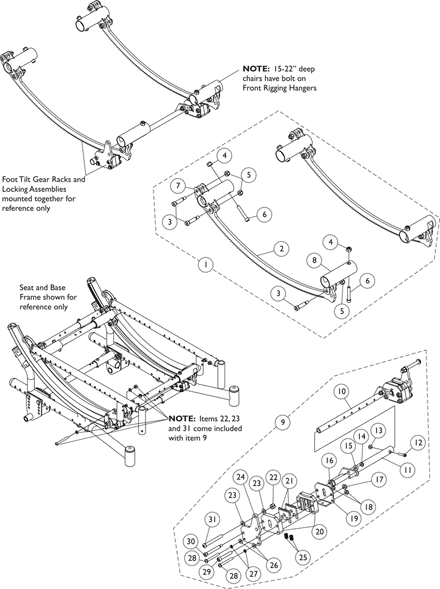

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Rack, Gear, Chrome, Foot Tilt	1	2
3	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1", 1/4-20)	1	6
4	Locknut (1/4-28)	1	4
5	Locknut (1/4-20)	1	6
6	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	4
7	Bracket, Gear Rack Mounting, Color, Rear	1	2
8	Bracket, Gear Rack Mounting, Color, Front	1	2

NLA - Foot Tilt Gear Rack Assembly, Color (12 - 22" W x 15 - 22" D)

N/A

1162208

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Tube, Actuator, Black - Left (12 - 18" W)	1	1
11	Tube, Actuator, Black - Right	1	1
12	Screw, Socket Head (8-32 x 3/4")	1	1
13	Locknut (#8-32)	1	1
14	NLA - Locknut (#10-24)	1	2
15	Washer, Nylon (1/4 x 1/2 x 1/8")	1	2
16	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
17	Locknut (1/4-28)	1	2
18	Locknut (#10-32)	1	4
19	Plate, Outer, Black	1	2
20	Block, Slide	1	4
21	Gear, Sector, Chrome	1	4
22	Locknut (1/4-20)	1	2
23	Washer (1/4 x 1/2 x 1/16")	1	4
24	Plate, Actuator Mounting, Black	1	2
25	Spring, Compression	1	4
26	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
27	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
28	Screw, Phillips Pan Head (10-32 x 1-5/8")	1	4
29	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
30	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
31	Screw, Socket Button Head (1/4-20X2-1/4")	1	2
11	Tube, Actuator, Black - Left (12 - 18" W)	1	1
12	Tube, Actuator, Black - Right	1	1
13	Screw, Socket Head (8-32 x 3/4")	1	1
14	Locknut (#8-32)	1	1
15	NLA - Locknut (#10-24)	1	2
16	Washer, Nylon (1/4 x 1/2 x 1/8")	1	2
17	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
18	Locknut (1/4-28)	1	2
19	Locknut (#10-32)	1	4
20	Plate, Outer, Black	1	2
21	Block, Slide	1	4
22	Gear, Sector, Chrome	1	4
23	Locknut (1/4-20)	1	2
24	Washer (1/4 x 1/2 x 1/16")	1	4
25	Plate, Actuator Mounting, Black	1	2
26	Spring, Compression	1	4
27	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
28	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
29	Screw, Phillips Pan Head (10-32 x 1-5/8")	1	4
30	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
31	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
32	Screw, Socket Button Head (1/4-20X2-1/4")	1	2

NLA - Foot Tilt Gear Rack Locking Assembly, Black (12 - 18" W)

N/A

1162209

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Tube, Actuator, Black - Left (16 - 22" W)	1	1
11	Tube, Actuator, Black - Right	1	1
12	Screw, Socket Head (8-32 x 3/4")	1	1
13	Locknut (#8-32)	1	1
14	NLA - Locknut (#10-24)	1	2
15	Washer, Nylon (1/4 x 1/2 x 1/8")	1	2
16	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
17	Locknut (1/4-28)	1	2
18	Locknut (#10-32)	1	4
19	Plate, Outer, Black	1	2
20	Block, Slide	1	4
21	Gear, Sector, Chrome	1	4
22	Locknut (1/4-20)	1	2
23	Washer (1/4 x 1/2 x 1/16")	1	4
24	Plate, Actuator Mounting, Black	1	2
25	Spring, Compression	1	4
26	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
27	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
28	Screw, Phillips Pan Head (10-32 x 1-5/8")	1	4
29	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
30	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
31	Screw, Socket Button Head (1/4-20X2-1/4")	1	2
11	Tube, Actuator, Black - Left (16 - 22" W)	1	1
12	Tube, Actuator, Black - Right	1	1
13	Screw, Socket Head (8-32 x 3/4")	1	1
14	Locknut (#8-32)	1	1
15	NLA - Locknut (#10-24)	1	2
16	Washer, Nylon (1/4 x 1/2 x 1/8")	1	2
17	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2
19	Locknut (#10-32)	1	4
20	Plate, Outer, Black	1	2
21	Block, Slide	1	4
22	Gear, Sector, Chrome	1	4
23	Locknut (1/4-20)	1	2
24	Washer (1/4 x 1/2 x 1/16")	1	4
25	Plate, Actuator Mounting, Black	1	2
26	Spring, Compression	1	4
27	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
28	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
29	Screw, Phillips Pan Head (10-32 x 1-5/8")	1	4
30	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2
31	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
32	Screw, Socket Button Head (1/4-20X2-1/4")	1	2
18	Locknut (1/4-28)	1	2

NLA - Foot Tilt Gear Rack Locking Assembly, Black (16 - 22" W)

N/A

Note Code	Definition
A	Includes items 2-8 for both right and left sides. Specify frame finish when ordering.
B	Includes items 10-31 for for both right and left sides. Used on 12 - 18" wide chairs
C	Includes items 10-31 for for both right and left sides. Used on 16 - 22" wide chairs
