1142080

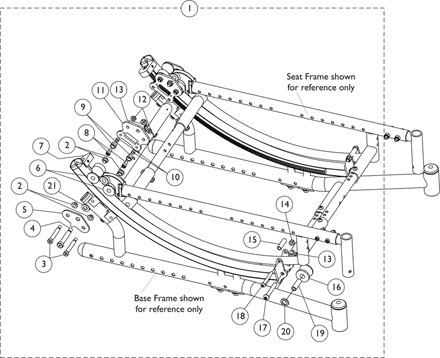

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bushing, Flange	1	8
3	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-3/4", 1/4-20)	1	4
4	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	2
5	Plate, Tilt Outside	1	2
6	Roller, Rear	1	4
7	Stop, Tilt, Black	1	2
7	Screw, Socket Set Cup Point (1/4-28 x 1/2")	1	2
8	NLA - Screw, Socket Head (1/4-28 x 1/2")	1	4
9	NLA - Upstop, Roller	1	4
10	Bushing (1/4 x 5/16 x 3/16")	1	4
11	Plate, Tilt Inside	1	2
12	Locknut (1/4-20)	1	4
13	Locknut (5/16-18)	1	4
14	Locknut (1/4-20)	1	2
15	NLA - Bushing, Nylon (1/4 x 3/8 x 1-1/4")	1	2
16	Roller, Nylon, Black	1	2
17	Screw, Socket Button Head (5/16-18 x 2")	1	2
18	Screw, Socket Button Head (1/4-20 x 1-7/8")	1	2
19	Bushing, Steel (5/16 x 27/64 x 1-1/4")	1	2
20	Washer, Nylon (1/2 x 3/4 x 3/32")	1	2
21	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
2	Bushing, Flange	1	8
3	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-3/4", 1/4-20)	1	4
4	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	2
5	Plate, Tilt Outside	1	2
6	Roller, Rear	1	4
7	Stop, Tilt, Black	1	2
7	Screw, Socket Set Cup Point (1/4-28 x 1/2")	1	2
8	NLA - Screw, Socket Head (1/4-28 x 1/2")	1	4
9	NLA - Upstop, Roller	1	4
10	Bushing (1/4 x 5/16 x 3/16")	1	4
11	Plate, Tilt Inside	1	2
12	Locknut (1/4-20)	1	4
13	Locknut (5/16-18)	1	4
14	Locknut (1/4-20)	1	2
15	NLA - Bushing, Nylon (1/4 x 3/8 x 1-1/4")	1	2
16	Roller, Nylon, Black	1	2
17	Screw, Socket Button Head (5/16-18 x 2")	1	2
18	Screw, Socket Button Head (1/4-20 x 1-7/8")	1	2
19	Bushing, Steel (5/16 x 27/64 x 1-1/4")	1	2
20	Washer, Nylon (1/2 x 3/4 x 3/32")	1	2
21	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2

NLA - Kit, Tilt Hardware

Note Code	Definition
A	Includes items 2-21. Includes hardware for right and left sides.
