1

1147282

Seat, Patient, Lift

1

$1,906.00

Create/add to Wishlist

2

1147278

Arm, Seat, Lift - Right

1

Create/add to Wishlist

3

1147277

Arm, Seat, Lift - Left

1

Create/add to Wishlist

4

1147283

NLA - Support, Seat, Lift w/o Load Cell

1

N/A

Create/add to Wishlist

5

1147304

Shroud, Seat, Arm

1

Create/add to Wishlist

6

1147279

NLA - Bearing, Arm, Seat

1

2

N/A

Create/add to Wishlist

7

1147372

NLA - Shoe, Brake, Bearing

1

2

N/A

Create/add to Wishlist

8

PAR9954

NLA - Screw, Hex Head (1/4-20 x 1")

1

4

N/A

Create/add to Wishlist

9

IHTRP1807

NLA - Locknut (1/4-20)

1

4

N/A

Create/add to Wishlist

10

1142191

Screw, Set, Socket, Cup Point (3/8-16 x 5/8")

1

4

Create/add to Wishlist

11

40363X000

Hex Nut (3/8"-16)

1

4

$10.00

Create/add to Wishlist

12

1153346

NLA - Washer, Flat (13/32 x 13/16 x 1/16")

1

4

N/A

Create/add to Wishlist

13

1095483

NLA - Locknut (1/2-13)

1

4

N/A

Create/add to Wishlist

14

1147366

NLA - Screw, Cap Socket (M12 - 1.75 x 50mm)

1

8

N/A

Create/add to Wishlist

15

1147307

NLA - Plate, Base, Load Cell

1

N/A

Create/add to Wishlist

16

1159621

Part/Kit Description	Qty/Pkg	Qty/Asbly
Load Cell and Connector Assembly	1	1
Instruction Sheet, Digital Scale	1	1
Load Cell and Connector Assembly	1	1
Instruction Sheet, Digital Scale	1	1

Kit, Load Cell and Connector

1

$1,372.00

C

Create/add to Wishlist

17

1033800

NLA - Hook, 2" Adhesive Back

1

N/A

A

Create/add to Wishlist

18

1026082

NLA - Fastener, Dual Lock

1

N/A

A

Create/add to Wishlist

1147313

Belt, Lap, Seat

1

$57.00

B

Create/add to Wishlist

1151805

Belt, Chest, Seat

1

$32.00

B

Note Code	Definition
A	Cut item from roll into 2" by 2" square pieces (1 each).
B	Item not shown in illustration.
C	Part includes Load Cell and Connector and Instruction Sheet.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

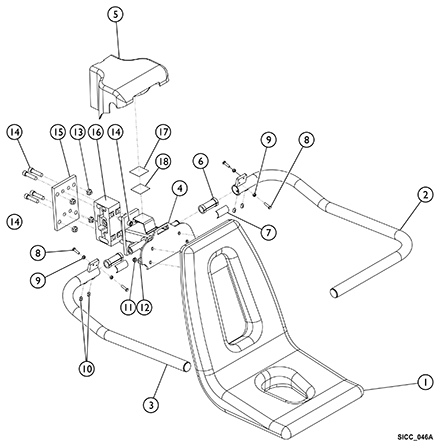

Model 1900S - Patient Seat Assembly
