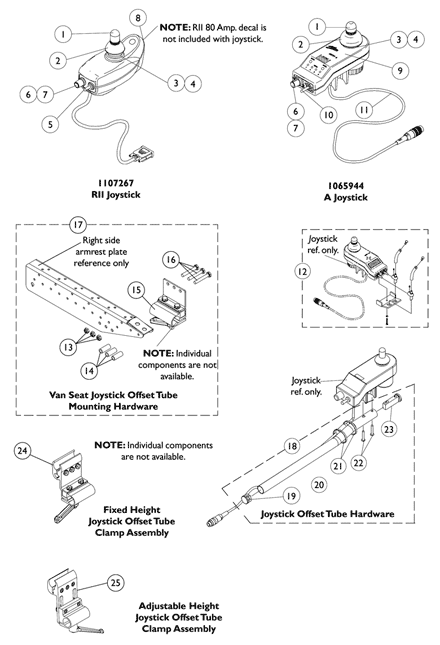

MKIV RII and MKIV A Joysticks and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1040217

Knob, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1040218

Skirt, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1036764

NLA - Inductive, Joystick

N/A

Create/add to Wishlist

1104397

NLA - Inductive, Joystick

N/A

Create/add to Wishlist

50000X364

NLA - Boot, Joystick

N/A

Create/add to Wishlist

1010042

NLA - Switch, Toggle SPDT

N/A

Create/add to Wishlist

1040225

NLA - Potentiometer, Speed

N/A

Create/add to Wishlist

1115518

NLA - Potentiometer, Speed

N/A

Create/add to Wishlist

1025516

NLA - Knob, Speed Control

N/A

Create/add to Wishlist

1108692

NLA - Decal, RII 80 Amp

N/A

Create/add to Wishlist

1040190

NLA - Overlay, Joystick Decal A Joystick

N/A

Create/add to Wishlist

1115523

NLA - Switch, On/ Off Momentary

N/A

Create/add to Wishlist

1104205

NLA - Cable Assembly

N/A

Create/add to Wishlist

1055736

NLA - Kit, Toggle Switch Extension

N/A

Create/add to Wishlist

1025195

Locknut (1/4-20)

$9.00

Create/add to Wishlist

1087219

Spacer (1/4 x 3/8 x 1")

Create/add to Wishlist

1105049

Clamp Assembly, Fixed Height, Captain/ Van Seat

$39.00

Create/add to Wishlist

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

$8.00

Create/add to Wishlist

1115000

Kit, Joystick Tube Mounting Hardware - Captain Seat

$47.00

A ,H

Create/add to Wishlist

1093069

Kit, 1/2" Offset Joystick Tube with Hardware

$30.00

Create/add to Wishlist

1161733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Plug Button, Black (7/8")	1	1
4	Tie Wrap (11-1/2" L)	1	2
5	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
6	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
19	Plug Button, Black (7/8")	1	1
20	Tube, Joystick Offset (2")	1	1
21	Tie Wrap (11-1/2" L)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
23	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
	Tube, Joystick Offset (2")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
10	Plug Button, Black (7/8")	1	1
11	Tube, Joystick Offset (2")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
8	Plug Button, Black (7/8")	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
11	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
10	Spacer, Joystick Tube, Black	1	1
8	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	Spacer, Joystick Tube, Black	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
6	Tube, Joystick Offset (2")	1	1
8	Tie Wrap (11-1/2" L)	1	2
5	Plug Button, Black (7/8")	1	1
7	Tie Wrap (11-1/2" L)	1	2
6	Plug Button, Black (7/8")	1	1
8	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
7	Tube, Joystick Offset (2")	1	1
11	Plug Button, Black (7/8")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1

Kit, 2" Offset Joystick Tube w/ Hardware

$32.00

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

$9.20

Create/add to Wishlist

1095502

NLA - Package, Tie Wrap (11-1/2" L)

N/A

Create/add to Wishlist

1093071

Clamp, Fixed Height Joystick Tube

$29.00

Create/add to Wishlist

1139422

Clamp, Height Adjustable Joystick Tube (ARM250)

$91.00

Create/add to Wishlist

1107267

NLA - Joystick, MKIV RII

N/A

D ,E ,I ,J

Create/add to Wishlist

1065944

NLA - Joystick, "A"

N/A

D ,J

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 13 thru 16.
B	MKIV A joystick only
C	Used for A.S.B.A. seats and Includes items 19 thru 23.
D	See pictorial for reference
E	Item 8 RII 80 amp. decal is not included
F	MKIV A - item has a non-solder connector
G	Used for Van Seats and includes items 19 thru 23. Kits contains Standard (#10-32) and Metric (M5) screws. Customer selects screw that applies to their application.
H	Due to product improvement, the joystick mounting bracket with a separate adjustment lock were replaced with the clamp assembly shown as of 2/20/03 and is backward compatible.
I	As of 1/31/03 MKIV RII joystick was made with a longer cable and serves as a direct replacement for chairs made before 1/31/03
J	When upgrading MKIV RII electronics to "A" electronics also order wiring harness part no. 1116609. This harness allows charging capabilities since "A" joystick does not have this.
K	Item requires soldering.
L	MKIV RII - item requires soldering.
M	Introduced as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp.
