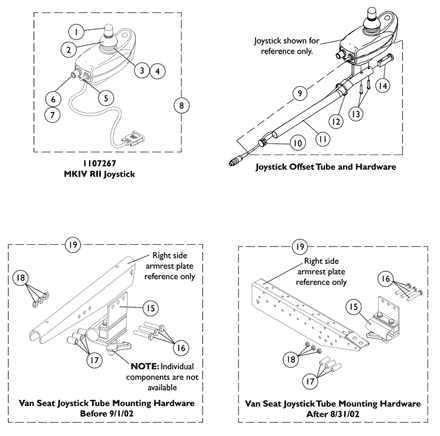

Electronics - MKIV RII Joystick & Mounting Hardware (Before 6/27/03)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1040217

Knob, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1040218

Skirt, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1036764

NLA - Inductive, Joystick

N/A

Create/add to Wishlist

50000X364

NLA - Boot, Joystick

N/A

Create/add to Wishlist

1010042

NLA - Switch, Toggle SPDT

N/A

Create/add to Wishlist

1040225

NLA - Potentiometer, Speed

N/A

Create/add to Wishlist

1025516

NLA - Knob, Speed Control

N/A

Create/add to Wishlist

1107267

NLA - Joystick, MKIV RII

N/A

Create/add to Wishlist

1161733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Plug Button, Black (7/8")	1	1
4	Tie Wrap (11-1/2" L)	1	2
5	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
6	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
19	Plug Button, Black (7/8")	1	1
20	Tube, Joystick Offset (2")	1	1
21	Tie Wrap (11-1/2" L)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
23	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
	Tube, Joystick Offset (2")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
10	Plug Button, Black (7/8")	1	1
11	Tube, Joystick Offset (2")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
8	Plug Button, Black (7/8")	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
11	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
10	Spacer, Joystick Tube, Black	1	1
8	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	Spacer, Joystick Tube, Black	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
6	Tube, Joystick Offset (2")	1	1
8	Tie Wrap (11-1/2" L)	1	2
5	Plug Button, Black (7/8")	1	1
7	Tie Wrap (11-1/2" L)	1	2
6	Plug Button, Black (7/8")	1	1
8	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
7	Tube, Joystick Offset (2")	1	1
11	Plug Button, Black (7/8")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1

Kit, 2" Offset Joystick Tube w/ Hardware

$32.00

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

$9.20

Create/add to Wishlist

1095502

NLA - Package, Tie Wrap (11-1/2" L)

N/A

Create/add to Wishlist

1105049

Clamp Assembly, Fixed Height, Captain/ Van Seat

$39.00

Create/add to Wishlist

1057955

Screw, Hex Head (1/4-20 x 1-1/4")

$10.00

Create/add to Wishlist

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

$8.00

Create/add to Wishlist

1101524

NLA - Spacer (1/4 x 7/16 x 5/8")

N/A

Create/add to Wishlist

1087219

Spacer (1/4 x 3/8 x 1")

Create/add to Wishlist

1025195

Locknut (1/4-20)

$9.00

Create/add to Wishlist

1105050

NLA - Kit, Joystick Tube Mounting Hardware - Captain/ Van Seat

N/A

C ,D ,F

Create/add to Wishlist

1115000

Kit, Joystick Tube Mounting Hardware - Captain Seat

$47.00

C ,E ,F

Create/add to Wishlist

1006271

Extension, Joystick, Straight Style (1561) (1/2" W x 5" L)

$103.00

Create/add to Wishlist

1006270

Extension, Joystick, "T" Style (1560) (4" W x 5-1/2" L)

$126.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Includes items 10 thru 14. Kit contains Standard (#10-32) and Metric (M5) screws. Customer selects the screws that applies to their application.
C	Includes items 15 thru 18.
D	Before 9/1/02
E	After 8/31/02
F	Due to product improvement, the joystick mounting bracket with a separate adjustment lock were replaced with the clamp assembly shown as of 2/20/03 and is backward compatible.

Catalog Literature

Parts Books for Pronto® M50™ Pronto® M51™ with SureStep® (Before 1/20/05)
