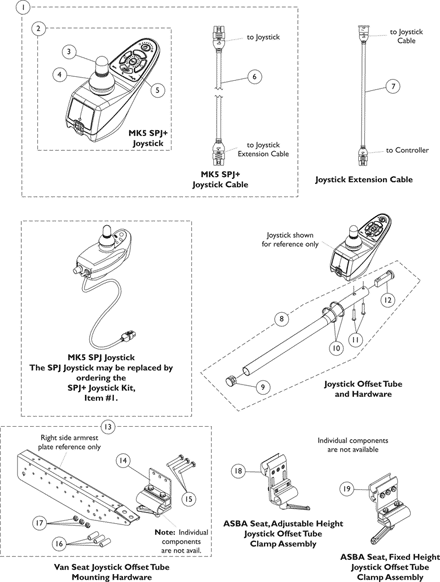

Electronics - MK5 SPJ (After 6/26/03) & SPJ+ (Introduced 8/16/05) Joystick & Mounting Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1153650

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Joystick, SPJ+	1	1
3	Knob, Joystick Rubber, Black	1	1
4	Skirt, Joystick Rubber, Black	1	1
5	NLA - Overlay, SPJ+ Joystick	1	1
6	Cable, Joystick SPJ+	1	1
2	Joystick, SPJ+	1	1
3	Knob, Joystick Rubber, Black	1	1
4	Skirt, Joystick Rubber, Black	1	1
5	NLA - Overlay, SPJ+ Joystick	1	1
6	Cable, Joystick SPJ+	1	1
2	Joystick, SPJ+	1	1
3	Knob, Joystick Rubber, Black	1	1
4	Skirt, Joystick Rubber, Black	1	1
5	NLA - Overlay, SPJ+ Joystick	1	1
6	Cable, Joystick SPJ+	1	1

Kit, SPJ+ Joystick w/ Cable

$788.00

A ,G

Create/add to Wishlist

1127291

Joystick, SPJ+

$768.00

Create/add to Wishlist

See Note

See Footnote

N/A

Create/add to Wishlist

1040217

Knob, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1040218

Skirt, Joystick Rubber, Black

$10.00

Create/add to Wishlist

1165094

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1
NLA - Overlay, SPJ+ Joystick	1	1
Instruction Sheet, MK5/MK6 Overlay	1	1

Kit, Overylay, SPJ+ Joystick (MK5/MK6)

$72.00

Create/add to Wishlist

1127293

Cable, Joystick SPJ+

$50.00

Create/add to Wishlist

1116404

Cable, Joystick Extension

$40.00

Create/add to Wishlist

1161733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Plug Button, Black (7/8")	1	1
4	Tie Wrap (11-1/2" L)	1	2
5	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
6	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
19	Plug Button, Black (7/8")	1	1
20	Tube, Joystick Offset (2")	1	1
21	Tie Wrap (11-1/2" L)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
22	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
23	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
	Tube, Joystick Offset (2")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
9	Plug Button, Black (7/8")	1	1
10	Tie Wrap (11-1/2" L)	1	2
11	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
11	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
12	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
10	Plug Button, Black (7/8")	1	1
11	Tube, Joystick Offset (2")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
8	Plug Button, Black (7/8")	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
11	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1
9	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
10	Spacer, Joystick Tube, Black	1	1
8	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
9	Spacer, Joystick Tube, Black	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
6	Tube, Joystick Offset (2")	1	1
8	Tie Wrap (11-1/2" L)	1	2
5	Plug Button, Black (7/8")	1	1
7	Tie Wrap (11-1/2" L)	1	2
6	Plug Button, Black (7/8")	1	1
8	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
7	Tube, Joystick Offset (2")	1	1
11	Plug Button, Black (7/8")	1	1
12	Tie Wrap (11-1/2" L)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
13	Screw, Phillips Pan Head (M5 x .8 x 30mm)	1	2
14	Spacer, Joystick Tube, Black	1	1
	Tube, Joystick Offset (2")	1	1

Kit, 2" Offset Joystick Tube w/ Hardware

$32.00

Create/add to Wishlist

1093069

Kit, 1/2" Offset Joystick Tube with Hardware

$30.00

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

$9.20

Create/add to Wishlist

1095502

NLA - Package, Tie Wrap (11-1/2" L)

N/A

Create/add to Wishlist

1025714

Screw, Phillips Pan Head (#10-32 x 1-1/8")

$8.00

Create/add to Wishlist

1093063

Spacer, Joystick Tube, Black

$11.00

Create/add to Wishlist

1115000

Kit, Joystick Tube Mounting Hardware - Captain Seat

$47.00

Create/add to Wishlist

1105049

Clamp Assembly, Fixed Height, Captain/ Van Seat

$39.00

Create/add to Wishlist

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

$8.00

Create/add to Wishlist

1087219

Spacer (1/4 x 3/8 x 1")

Create/add to Wishlist

1025195

Locknut (1/4-20)

$9.00

Create/add to Wishlist

1139422

Clamp, Height Adjustable Joystick Tube (ARM250)

$91.00

Create/add to Wishlist

1093071

Clamp, Fixed Height Joystick Tube

$29.00

Create/add to Wishlist

1006270

Extension, Joystick, "T" Style (1560) (4" W x 5-1/2" L)

$126.00

Create/add to Wishlist

1006271

Extension, Joystick, Straight Style (1561) (1/2" W x 5" L)

$103.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 thru 6.
B	Used on A.S.B.A. seats. Includes Joystick Tube plus items 9 thru 12.
C	Includes items 14 thru 17.
D	Not Shown.
E	Used on Van Seats. Includes Joystick Tube and items 9 thru 12. Kit contains Standard (#10-32) and Metric (M5) screws. Customer selects the screw that applies to their application.
F	Introduced as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp.
G	Before replacing your joystick, verify with Invacare Technical Service Phone Support first to see if only a Joystick Overlay Kit is needed
H	MK5 SPJ Joystick part number is no longer available as a service part. Use item #1 1153650 as the replacement.
