Front Riggings - Footrest and Legrest Accessories

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1032243

Strap, Calf w/ Hook and Loop (36" L)

$38.00

Create/add to Wishlist

1032215

H-Strap (26" L)

$81.00

A ,B

Create/add to Wishlist

1032216

H-Strap (31" L)

$81.00

A ,C

Create/add to Wishlist

1026987

Guard, Impact (8" L)

$33.00

A ,E

Create/add to Wishlist

See Chart

Added to Cart

Footplate Type	Chair Width	Heel Loop Single #	Heel Loop Pair #	Heel Loop w/ Ankle Strap Single # Rt.	Heel Loop w/ Ankle Strap Single # Lt.	Heel Loop w/ Ankle Strap Pair #	Attaching Hardware Pair #
Composite Small (1651)	16-17" W Tapered	1028412- NLA	1035912- NLA	1035908- NLA	1035909- NLA	1035906	1035931 MSRP: $27.00
Composite Medium (1651)	16" W or 18-19" W Tapered	1017621 MSRP: $31.00	1035917- NLA	1035919 MSRP: $35.00	1035920 MSRP: $35.00	1035918 MSRP: $60.00	1035931 MSRP: $27.00
Composite Large (1651)	17-22" W or 20-22" W Tapered	1017621 MSRP: $31.00	1035917- NLA	1035932- NLA	1035933- NLA	1035930 MSRP: $60.00	1035931 MSRP: $27.00
Standard Aluminum (1650)	16-22" W	1017621 MSRP: $31.00	1035917- NLA	1035919 MSRP: $35.00	1035920 MSRP: $35.00	1035918 MSRP: $60.00	1035907 MSRP: $27.00
X-Large Aluminum (1350)	16-22" W	1017621 MSRP: $31.00	1035917- NLA	1035919 MSRP: $35.00	1035920 MSRP: $35.00	1035918 MSRP: $60.00	1055241 MSRP: $23.00

Create/add to Wishlist

Heel Loops and Hardware (Not Including AT5543)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Footplate Type	Part Number	Part Number Consists of
Composite (1651)	1035931 MSRP: $27.00	(2) Screw, Phillips Pan Head (1/4-20 x 2-1/4") (2) Spacer (1/4 x 11/32 x 1-3/4") (2) Hex Nut w/ Nylon Cap (1/4-20) (2) Flat Washer (1/4 x 5/8 x 1/16")
Standard Aluminum (1650)	1035907 MSRP: $27.00	(2) Screw, Phillips Pan Head (1/4-20 x 2-1/2") (2) Spacer (1/4 x 11/32 x 1-3/4") (2) Locknut (1/4-20)
X-Large Aluminum (1350)	1055241 MSRP: $23.00	(2) Screw, Phillips Pan Head (1/4-20 x 2-1/4") (2) Spacer (1/4 x 11/32 x 1-3/4") (2) Locknut (1/4-20)

Create/add to Wishlist

Attaching Hardware Part Numbers (Not Including AT5543)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Footplate Type	Part Number	Part Number Consists of
AT5543 Adj. Angle	1160723 MSRP: $37.00	(2) Heel Loops (4) Screw, Phillips Pan Head (1/4-20 x 2-1/4") (4) Spacer (4) Locknut (1/4-20)
AT5543 Adj. Angle	1160724 MSRP: $59.00	(2) Heel Loops w/ Ankle Straps (4) Screw, Phillips Pan Head (1/4-20 x 2-1/4") (4) Spacer (4) Locknut (1/4-20)
Attaching Hardware Only	1035931 MSRP: $27.00	(2) Screw, Phillips Pan Head (1/4-20 x 2-1/4") (2) Spacer (1/4 x 11/32 x 1-3/4") (2) Hex Nut w/ Nylon Cap (1/4-20) (2) Flat Washer (1/4 x 5/8 x 1/16")

Create/add to Wishlist

AT5543 Heel Loops, Heel Loops w/ Ankle Straps and Hardware

N/A

Create/add to Wishlist

See Chart

Added to Cart

Footplate Type		Toe Loop w/o Hardware Single #		Toe Loop w/o Hardware Pair #		Attaching Hardware Part Number		Attaching Hardware Consists of
1651, 1650, 1350, Footplates		04572X025 MSRP: $30.00		1037087 MSRP: $82.00		1037089 MSRP: $42.00		(4) Screw, Phillips Pan Head (10-32 x 7/8") (4) Washer (1/4 x 3/4 x 3/32") (4) Locknut (10-32)
AT5543 Footplates		04572X025		1037087 MSRP: $82.00		1104749 MSRP: $23.00		(4) Screw, Phillips Pan Head (10-32 x 1/2") (4) Washer (1/4 x 3/4 x 3/32")

Create/add to Wishlist

Toe Loops and Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition

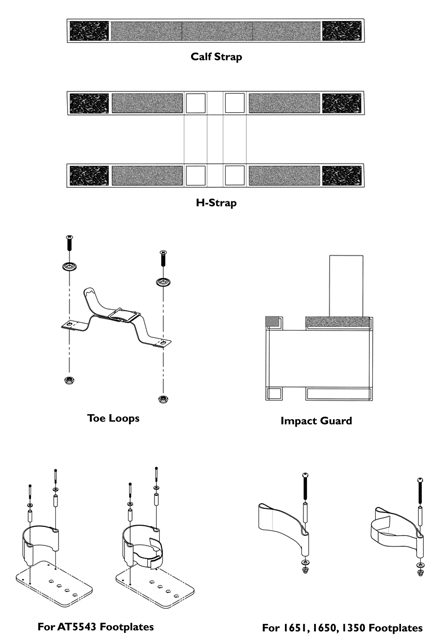

A	See drawings for reference
B	For 16"-18" wide models
C	For 19"-22" wide models
D	Not Shown
E	For 70 deg. Tapered Footrest.

Catalog Literature

Parts Books for Formula™ Invisible Super Low™ Tilt
