2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$80.00

C

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$79.00

C

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$80.00

C

Create/add to Wishlist

3

1058517

Clamp, Footplate

1

$13.50

Create/add to Wishlist

4

1057855

Tube, Pivot and Slide, Straight, Steel, Black (9-7/8" L)

1

$25.00

Create/add to Wishlist

4

1057856

Tube, Pivot/Slide, Straight, Steel, Black (11-7/8" L)

1

$25.00

Create/add to Wishlist

4

1121135

Tube, Pivot/Slide, Straight, Steel, Black (13-7/8" L)

1

$31.00

Create/add to Wishlist

4

1091745

NLA - Tube, Pivot/Slide, Straight, Steel, Chrome (13-7/8" L)

1

N/A

A

Create/add to Wishlist

5

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$10.00

Create/add to Wishlist

6

1052102

Hinge, Footplate - Right

1

$57.00

Create/add to Wishlist

6

1052103

Hinge, Footplate - Left

1

$57.00

Create/add to Wishlist

7

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

$9.20

Create/add to Wishlist

8

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

$9.20

Create/add to Wishlist

9

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

25

1

N/A

Create/add to Wishlist

10

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

$8.00

Create/add to Wishlist

11

1026900

Washer (1/4 x 23/32 x 1/16")

1

$1.20

Create/add to Wishlist

12

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$44.00

Create/add to Wishlist

13

1026907

Washer (1/4 x 1/2 x 1/16")

1

$7.20

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

1

$44.00

Create/add to Wishlist

See Chart

Added to Cart

Rigging Type		16"-22" Wide (6-1/4" X-Large Footplate)
70, PHW93, AT5544 -Right		1062756 MSRP: $115.00
70, PHW93, AT5544 -Left		1062757 MSRP: $115.00
70, PHW93, AT5544, 11-7/8" Tube - Right		1062760 MSRP: $109.00
70, PHW93, AT5544, 11-7/8" Tube - Left		1062761 MSRP: $109.00
70, PHW93, AT5544, 13-7/8" Tube - Right		1121140 MSRP: $141.00
70, PHW93, AT5544, 13-7/8" Tube - Left		1121141 MSRP: $141.00
PHAL4A - Right		1091777- NLA
PHAL4A - Left		1091778- NLA

Create/add to Wishlist

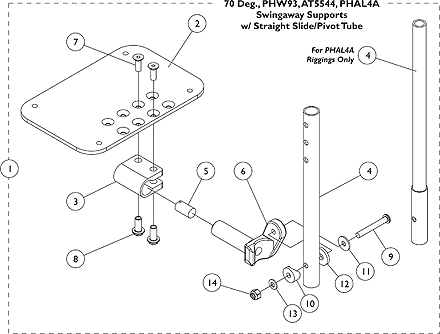

70 Degree, PHW93, AT5544, PHAL4A Swingaway Supports

N/A

Note Code	Definition
A	For PHAL4A only.
B	Includes Items 2 thru 14.
C	The footplate design was revised on 9/2/2008 with rounder corners and accessory holes changed from eight to four. Recommended to replace footplate in pairs to match sides.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Adjustable Angle Footplate Assemblies - AT5543
