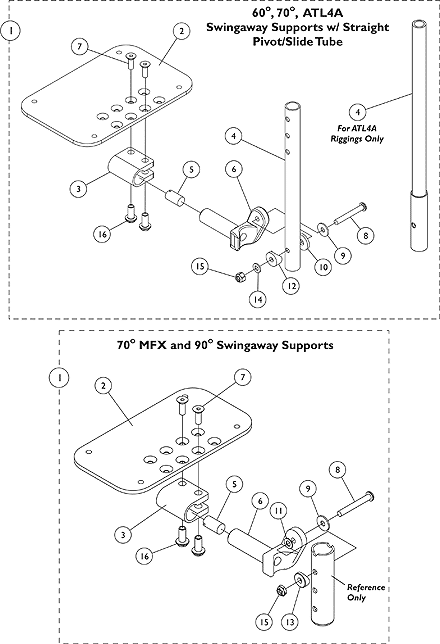

Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates (After 2/28/95)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes Items 2 thru 16. |
| B | For 10-11" wide chairs |
| C | For 12-13" wide chairs |
| D | For 14-16" wide chairs |
| E | Items 3, 7 and 16 must be ordered together for chairs manufactured before 8/10/99 due to a hardware change. |
| F | This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to replace the footplate in pairs to match sides. |
