Front Riggings - Pivot/Slide Tube w/ Adjustable Angle Footplates - AT5543 - PHW93

Print this page

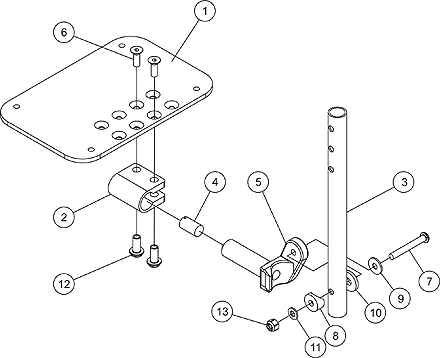

AT5543 - PHW93 Adjustable Angle Footplates

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1113574	Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)	1	1	$80.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1058517	Clamp, Footplate	1	1	$13.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1057855	Tube, Pivot and Slide, Straight, Steel, Black (9-7/8" L)	1	1	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1057856	Tube, Pivot/Slide, Straight, Steel, Black (11-7/8" L)	1	1	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1048816	Screw, Nylon Adjustment (1/2-13 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1052102	Hinge, Footplate - Right	1	1	$57.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1052103	Hinge, Footplate - Left	1	1	$57.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1029545	Screw, Socket Flat Head (1/4-20 x 3/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1022831	Screw, Socket Button Head (1/4-20 x 1-7/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025457	Spacer, Coved (1/4 x 3/4 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026900	Washer (1/4 x 23/32 x 1/16")	1	1	$1.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1016301	Washer, Nylon (5/16 x 7/8 x 1/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1082686	Nut, Barrel, Hex Head (1/4-20 x 11/16")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025736	Locknut (1/4-20)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to replace footplate in pairs to match sides.

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
