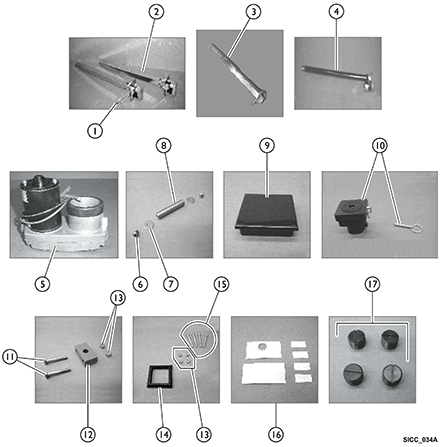

Mast and Ball Screw Assembly - 1200, 1300, 1500, 1600, 1800
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | IHTRP1010 | NLA - Outer Column Only | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | TRP1010-2R | Reverse Inner/Outer Column & Ball Screw Assembly | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 1 | IHTRP1008R | Reverse Inner Column Only | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 2 | TRP1010-2 | NLA - Inner/Outer Column Ball and Screw Assembly | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | IHTRP1008 | NLA - Inner Column Only | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | IHTRP1010 | NLA - Outer Column Only | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | IHTRP1010C | Stationary Outer Column | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 4 | TRP1030X | Ball Screw Assembly | 1 | 1 |
$828.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | IHTRP1820 | Ball Screw Motor | 1 | 1 |
$399.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | IHTRP1065 | NLA - Bolt, Motor Box, Stainless (1/4-20 x 3/8") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | IHTRP1082 | NLA - Washer | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | IHTRP1015 | NLA - Lift Pin | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | IHTRP1019 | NLA - Column Cap | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | IHTRP1007 | NLA - Emergency Crank Cap | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 10 | IHTRP1007D | NLA - Replacement Pin | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 11 | IHTRP1061 | NLA - Bolt, Trunion Block (5/16-18 x 2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | ITHRP1005 | Trunion Block | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 13 | IHTRP1070 | NLA - Nut, Nylon (5/16-18) | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | IHTRP1016A | NLA - Column Seal | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | IHTRP1060 | NLA - Bolt, Column Seal (5/16-18 x 2-3/4") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | TRP1041KIT | Bearing Tape Kit | 6 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 17 | IHTRP1073 | NLA - Bearing Screws | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Optional part. |
