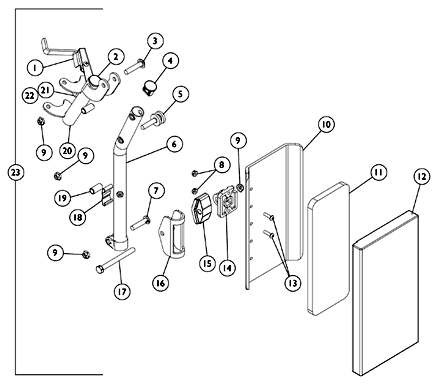

Front Riggings - Legrest Supports - 94BKR
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1035539 | Handle, Release, Black - Right | 1 | 1 |
$14.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 1 | 1035540 | Handle, Release, Black - Left | 1 | 1 |
$14.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 1 | 1031469 | NLA - Handle, Release, Black - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 1 | 1031470 | NLA - Handle, Release, Black - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 7930359 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 1/2") | 25 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 67005X000 | Rivnut (#10-32) | 1 | 1 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 1008935 | Spring, Release - Right | 1 | 1 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 1008936 | Spring, Release - Left | 1 | 1 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 47565X057 | Bushing (7/32 x 3/8 x 11/32") | 1 | 1 |
$8.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 2 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 3 | 1030948 | Screw, Slotted Truss Head (5/16-24 x 1-1/2") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 4 | 1095433 | Plug Button, Black (7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 5 | 1017021 | Stud | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||
| 6 | 1031358 | NLA - Tube, Support, Legrest, Elevating, Chrome - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 6 | 1031359 | NLA - Tube, Support, Legrest, Elevating, Chrome - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 6 | 1149473 | NLA - Tube, Support, Legrest, Elevating, Silver Vein - Right | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 6 | 1149474 | NLA - Tube, Support, Legrest, Elevating, Silver Vein - Left | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 7 | 11232X009 | Bolt, Lug (5/16-24 x 1-3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 8 | 7930365 | NLA - Locknut (#10-32) | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 9 | 7930363 | NLA - Package, Locknut (5/16"-24) | 25 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 10 | 47071X405 | NLA - Trough, Leg | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 11 | 43022X182 | NLA - Foam | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 12 | 1002848 | NLA - Cover | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 13 | 7930360 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 11/16") | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 14 | 04526X019 | Plate, Legrest Pad | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 15 | 1091220 | Spacer, Legrest | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 16 | 1025104 | Bracket, Legrest, Chrome | 1 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 17 | 1014807 | Screw, Hex Head (5/16-24 x 3-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 18 | 48823X008 | Spring, Leaf | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 19 | 47328X003 | Bushing, Pivot (5/16 x 7/16 x 7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 20 | 1031581 | NLA - Legrest Support Tube Assembly, Adult, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 20 | 1031582 | Legrest Support Tube Assembly, Adult, Black - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||
| 20 | 1033965 | Legrest Support Tube Assembly, Adult, Silver Vein - Right | 1 | 1 | A ,E |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 20 | 1033966 | Legrest Support Tube Assembly, Adult, Silver Vein - Left | 1 | 1 | A ,E |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 21 | 1022874 | Bumper | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 22 | 1030979 | Screw, Phillips Pan Head Tap (#10-32 x 3/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||
| 23 | 1031583 | NLA - Legrest Support Assembly, Adult, Silver Vein - Right | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 23 | 1031584 | NLA - Legrest Support Assembly, Adult, Silver Vein - Left | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 23 | 1034602 | NLA - Legrest Support Assembly, Adult, Silver Vein - Right | 1 | 1 | N/A | A ,E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
| 23 | 1034603 | NLA - Legrest Support Assembly, Adult, Silver Vein - Left | 1 | 1 | N/A | A ,E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||
|
See Chart
Added to Cart
Create/add to WishlistCreate/add to WishlistSee chart-note
|
Pivot Slide Tube with Aluminum Footplate | N/A | N/A | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Only used on Power Back Recliners with Multi-Function Frames. |
| B | Not Shown |
| C | Before 7/6/07 |
| D | After 7/5/07 |
| E | After 7/5/07 Color changed from chrome to silver vein. It is recommended to order in pairs to match |
