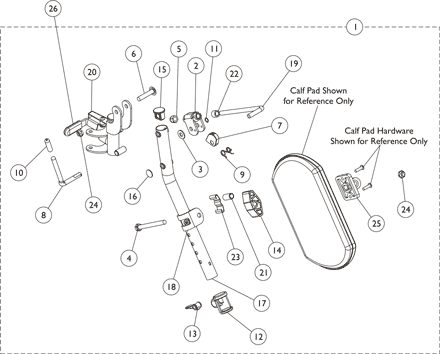

09. Front Riggings - Legrest Support Assembly - T94H Series - Invacare Transport Only
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1110338 | Legrest Support Assembly, Hemi, Black - Right | 1 | 1 |
$116.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1110339 | Legrest Support Assembly, Hemi, Black - Left | 1 | 1 |
$116.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1110308 | Bracket, Release, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 3 | 1013519 | Washer, Nylon (5/16 x 11/16 x 1/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1014807 | Screw, Hex Head (5/16-24 x 3-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 10261X000 | Nut, Acorn (5/16-24) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1030948 | Screw, Slotted Truss Head (5/16-24 x 1-1/2") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1037125 | Cam, Legrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1037126 | Handle, Release | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1037485 | Spring, Release | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1040060 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1040831 | Ring, Snap | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1048085 | Housing, Cam | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1048086 | Lever, Cam, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1091220 | Spacer, Legrest | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1095433 | Plug Button, Black (7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1096773 | Nut, Push Dome (5/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 1110165 | NLA - Tube, Elevating Support, Chrome - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1110166 | NLA - Tube, Elevating Support, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 1110163 | Tube, Elevating Support, Black - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 17 | 1110164 | NLA - Tube, Elevating Support, Black - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 18 | 1110208 | NLA - Bracket, Calf Pad Mounting, Chrome | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 18 | 1110207 | Bracket, Calf Pad Mounting, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 19 | 42326X001 | Bar, Ratchet | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 20 | 1110334 | NLA - Legrest Support Tube Assembly, Hemi, Black - Right | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 20 | 1110335 | Legrest Support Tube Assembly, Hemi, Black - Left | 1 | 1 |
$73.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 20 | 1110332 | NLA - Legrest Support Tube Assembly, Hemi, Black - Right | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 20 | 1110333 | Legrest Support Tube Assembly, Hemi, Black - Left | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 21 | 47328X003 | Bushing, Pivot (5/16 x 7/16 x 7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 22 | 47330X003 | Spacer (5/16 x 1/2 x 3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 23 | 48823X008 | Spring, Leaf | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 24 | 60264X001 | Locknut (5/16-24) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 25 | 04526X019 | Plate, Legrest Pad | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 26 | 1006490 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 26 | 1127688 | Package, Plastic Tip, Black | 10 | 1 |
$18.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2-25.. After 4/14/14 color changed from Chrome to Black. It is recommended to order both the right and left side to match. |
| B | Assembly includes: tip, bumper, screws, plug, spring, nuts, handle release, legrest support and bushing. |
| C | No longer available as a service part individually. Order #1 as a replacement. |
| D | After 11/14/14 color changed from Chrome to Black. It is recommended to order both the right and left side to match. |
