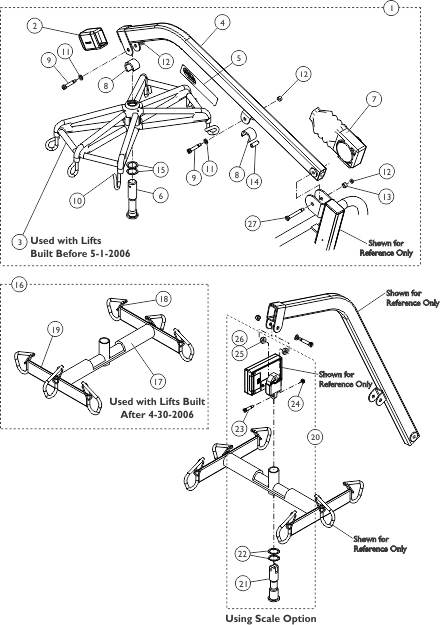

Boom Assembly - RPA600-1
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | After 5-13-1999, End Cap is Incorporated into (item 2) Tube Cover with Internal End Cap Assembly. |
| B | For Mast Assembly see section titled "Mast Assembly RPA600-1." |
| C | Not Shown. |
| D | Includes (6) Rubber Tips and Instruction Sheet. |
| E | Used on Spreader Bar Hooks. |
| F | Use on Boom Assembly "After 4-30-2006." |
| G | Use on Boom Assembly "Before 5-1-2006." |
| H | Used to mount Hanger Bar to Boom when using a Reliant Scale option. Use the Hanger Pin in this kit to mount the Scale and Hanger Bar to Boom. |
| J | As of 11-17-2008, the U Bracket that supports the hanger bar is now welded around the boom instead of under the boom and is backward compatible to lifts manufactured before 11/17/08. |
| K | Used on equipment built before 11-17-2008. |
| L | Used on equipment built after 11-16-2008. |
