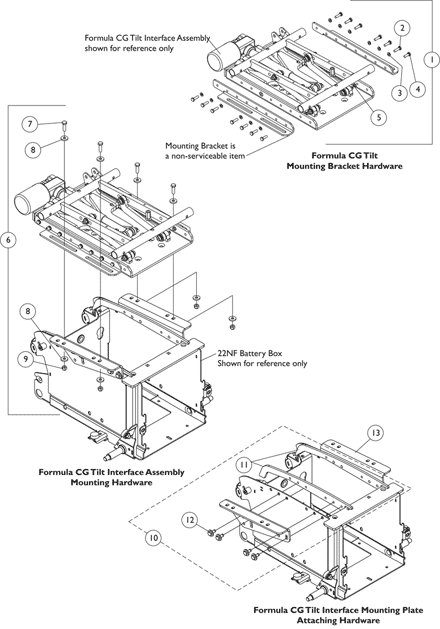

Frame - Seat Mtg. Hdwr. & Interface Mtg. Plates

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1121713

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head (1/4-20 x 7/8")	1	12
3	Lockwasher, Split (1/4")	1	12
5	Locknut (1/4-20)	1	2
4	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2

NLA - Kit, Formula CG Tilt & Tilt/Recline Mounting Bracket Hardware

N/A

Create/add to Wishlist

1121699

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head (5/16-18 x 1")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
9	Locknut, High Profile (5/16-18)	1	4
5	Screw, Hex Head (5/16-18 x 1")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
7	Locknut, High Profile (5/16-18)	1	4
7	Screw, Hex Head (5/16-18 x 1")	1	4
8	Washer, Flat (21/64 x 53/64 x 7/64")	1	8
9	Locknut, High Profile (5/16-18)	1	4

Kit, Formula CG Tilt, Recline & Tilt/Recline Interface Asbly. Mtg. Hdwr. (For TDX SP w/ 22NF Batteries)

Create/add to Wishlist

1147130

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
	Plate, Nut	1	2
	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
11	Plate, Nut	1	2
12	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
6	Plate, Nut	1	2
7	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
5	Plate, Nut	1	2
6	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8

Kit, Interface Mounting Plate Hardware

$139.00

C ,G

Create/add to Wishlist

1144678

Package, Screw Hex Head Sems with Patch (5/16-18 x 3/4")

Create/add to Wishlist

1121697

NLA - Plate, Low Interface Mounting - Right

N/A

Create/add to Wishlist

1121698

NLA - Plate, Low Interface Mounting - Left

N/A

Create/add to Wishlist

1148011

NLA - Plate, Medium Interface Mounting - Right

N/A

Create/add to Wishlist

1148012

NLA - Plate, Medium Interface Mounting - Left

N/A

Create/add to Wishlist

1148013

NLA - Plate, High Interface Mounting - Right

N/A

Create/add to Wishlist

1148014

NLA - Plate, High Interface Mounting - Left

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5
B	Includes items 7-9
C	Includes items 11 and 12
D	Low Seat-To-Floor = 17.5" at 0 degrees
E	Medium Seat-To-Floor = 18.5" at 0 degrees
F	High Seat-To-Floor = 19.5" at 0 degrees
G	When a TRBKTS option is used, item 11 Nut Plate is replaced with the TRBKTS Tie-Down Bracket. When replacement hardware is needed, order a package of 10 screws part number 1144678.
H	Not Shown. Replacement hardware for TRBKTS Tie-Down Bracket only.
