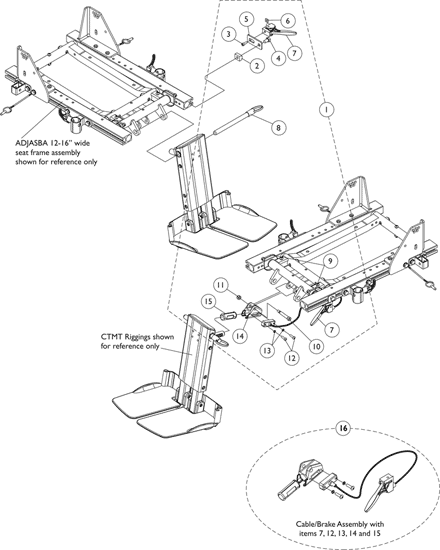

Front Riggings - Center Mount Rigging Mtg. Hdwr. - CTMT-F/CTMT-FJ (12" - 16" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1135960

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
12	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
14	Housing, Ratchet	1	1
6	Nut, Square (#10-32)	1	1
7	Cable/Brake Assembly	1	1
3	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
2	T-Nut (5/16-18)	1	1
11	Locknut (1/4-20)	1	1
15	Bearing, Glide	1	1
2	T-Nut (5/16-18)	1	1
3	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
4	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
5	Bracket, Release Handle Mounting, Black	1	1
6	Nut, Square (#10-32)	1	1
7	Cable/Brake Assembly	1	1
8	NLA - Pin, Quick Release (5" Long)	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
11	Locknut (1/4-20)	1	1
12	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
13	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
14	Housing, Ratchet	1	1
15	Bearing, Glide	1	1
5	Bracket, Release Handle Mounting, Black	1	1
9	Tie Wrap (11-1/2" L)	1	2
4	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
8	NLA - Pin, Quick Release (5" Long)	1	1
10	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	T-Nut (5/16-18)	1	1
3	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
4	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
5	Bracket, Release Handle Mounting, Black	1	1
6	Nut, Square (#10-32)	1	1
7	Cable/Brake Assembly	1	1
8	NLA - Pin, Quick Release (5" Long)	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
11	Locknut (1/4-20)	1	1
12	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
13	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
14	Housing, Ratchet	1	1
15	Bearing, Glide	1	1
3	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
4	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
5	Bracket, Release Handle Mounting, Black	1	1
6	Nut, Square (#10-32)	1	1
7	Cable/Brake Assembly	1	1
8	NLA - Pin, Quick Release (5" Long)	1	1
9	Tie Wrap (11-1/2" L)	1	2
10	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
11	Locknut (1/4-20)	1	1
12	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
13	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
14	Housing, Ratchet	1	1
15	Bearing, Glide	1	1
2	T-Nut (5/16-18)	1	1

Kit, Center Mount Rigging Mounting Hardware

$191.00

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-15.
B	Includes items 7 and 12-15.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
