EQUIPMENT US Site

1

1142476

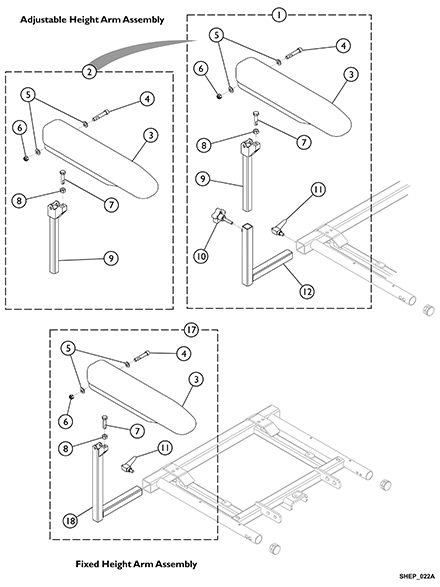

Arm Assembly, Adjustable Height Full Length, Black - Right

1

$172.00

A

Create/add to Wishlist

1

1142477

Arm Assembly, Adjustable Height Full Length, Black - Left

1

$172.00

A

Create/add to Wishlist

1

1142494

Arm Assembly, Adjustable Height Desk Length, Black - Right

1

$172.00

A

Create/add to Wishlist

1

1142495

Arm Assembly, Adjustable Height Desk Length, Black - Left

1

$172.00

A

Create/add to Wishlist

2

1142487

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
1	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
2	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
4	Locknut (1/4-20)	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
6	NLA - Nut, Hex (5/16-18)	1	1
7	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
8	NLA - Nut, Hex (5/16-18)	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
3	Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1

Upper Arm Assembly, Desk Length (Right/Left)

1

$92.00

B

Create/add to Wishlist

2

1140426

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
1	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
2	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
4	Locknut (1/4-20)	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
6	NLA - Nut, Hex (5/16-18)	1	1
7	Tube, Arm, Upper Adjustable Height, Black	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
6	Locknut (5/16-18)	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
3	Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)	1	1
4	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	1
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
6	Locknut (5/16-18)	1	1
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
8	NLA - Nut, Hex (5/16-18)	1	1
9	Tube, Arm, Upper Adjustable Height, Black	1	1

Upper Arm Assembly, Full Length (Right/Left)

1

$170.00

B

Create/add to Wishlist

3

1139923

Arm Pad, Desk Length, Black Urethane (12-1/4" L x 2-5/8" W)

1

$32.00

Create/add to Wishlist

3

1139924

Arm Pad, Full Length, Urethane, Black (15" L x 2-5/8" W)

1

$32.00

Create/add to Wishlist

10

1114910

Knob, Adjustment, Black (5/16-18 x 3/4")

1

$9.00

Create/add to Wishlist

11

1114914

Handle, Release, Black (5/16-18 x 1/2")

1

$12.00

Create/add to Wishlist

12

1113646

Tube, Arm, Lower Adjustable Width, Black - Right

1

$53.00

Create/add to Wishlist

12

1113647

Tube, Arm, Lower Adjustable Width, Black - Left

1

$53.00

Create/add to Wishlist

17

1142490

Arm Assembly, Fixed Height Desk Length, Black - Right

1

$269.00

C

Create/add to Wishlist

17

1142491

Arm Assembly, Fixed Height Desk Length, Black - Left

1

$269.00

C

Create/add to Wishlist

17

1142485

Arm Assembly, Fixed Height Full Length, Black - Right

1

$269.00

C

Create/add to Wishlist

17

1142484

Arm Assembly, Fixed Height Full Length, Black - Left

1

$269.00

C

Create/add to Wishlist

18

1114359

NLA - Tube, Arm, Fixed Height, Black - Right

1

N/A

Create/add to Wishlist

18

1114797

NLA - Tube, Arm, Fixed Height, Black - Left

1

N/A

Note Code	Definition
A	Includes items 2 - 12.
B	Includes items 3 - 9.
C	Includes items 3 - 8, 10, and item 18.

Arms - Van Seat

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Arms - Van Seat

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
