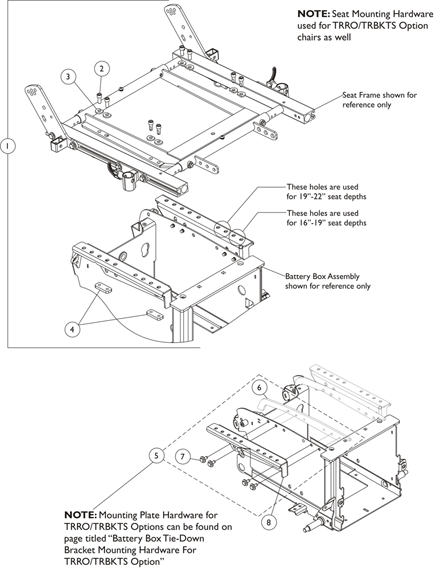

Frames - Seat ADJASBA Mounting Hardware (16" - 24" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144686

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	8
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	8
4	Plate, Nut (5/16-18)	1	4
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	8
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	8
4	Plate, Nut (5/16-18)	1	4
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	8
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	8
4	Plate, Nut (5/16-18)	1	4
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	8
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	8
4	Plate, Nut (5/16-18)	1	4
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	8
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	8
4	Plate, Nut (5/16-18)	1	4

Kit, Seat Frame Mounting Hardware

$61.00

Create/add to Wishlist

1147130

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
	Plate, Nut	1	2
	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
11	Plate, Nut	1	2
12	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
6	Plate, Nut	1	2
7	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
8	Plate, Nut	1	2
9	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
10	Plate, Nut	1	2
11	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8
5	Plate, Nut	1	2
6	Screw, Hex Head SEMS w/ Patch (5/16-18 x 3/4")	1	8

Kit, Interface Mounting Plate Hardware

$139.00

Create/add to Wishlist

1142298

Plate, Low Seat-To-Floor Mounting - Right

$20.00

C ,D

Create/add to Wishlist

1142299

Plate, Low Seat-To-Floor Mounting - Left

$20.00

C ,D

Create/add to Wishlist

1142300

Plate, Medium Seat-To-Floor Mounting - Right

$25.00

Create/add to Wishlist

1142301

Plate, Medium Seat-To-Floor Mounting - Left

$25.00

Create/add to Wishlist

1142302

Plate, High Seat-To-Floor Mounting - Right

$28.00

Create/add to Wishlist

1142303

Plate, High Seat-To-Floor Mounting - Left

$28.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4 and used for TRRO/TRBKTS option also.
B	Includes items 6 and 7.
C	LOW Seat-To-Floor is used when TRRO/TRBKTS option is ordered.
D	When TRRO/TRBKTS option is used, refer to page titled "Battery Box Tie-Down Bracket Mounting Hardware For TRRO/TRBKTS Option" for Mounting Plate Hardware.

Catalog Literature

Parts Books for TDX® SI, TDX® SI-2 TDX® SI-HD
